KYOCERA Precision Tools

Micro Tooling Solutions

Micro End Mills

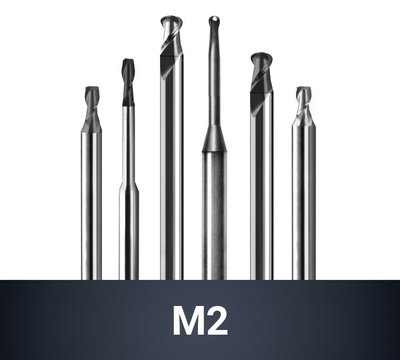

2 Flute | Series M2

Two flute design is ideal for softer alloyed, non-ferrous applications that require slotting or involve heavy chip loads. Available in Square, Corner Radius, and Ball Nose

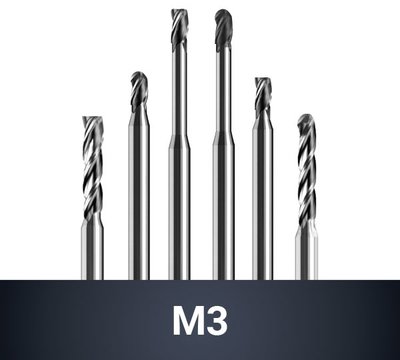

3 Flute | Series M3

Three flute design features improved chip space over four flutes and increased strength and feed capability over two flutes. Available in Square, Corner Radius, and Ball Nose

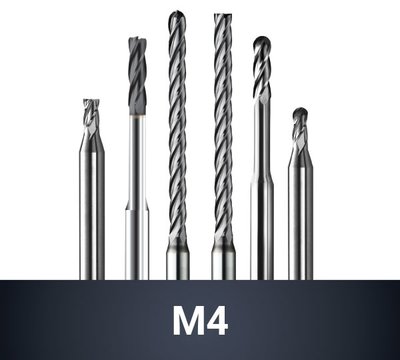

4 Flute | Series M4

Four flute design allows for higher feed and decreased deflection, improving productivity and surface finish. Available in Square, Corner Radius, and Ball Nose

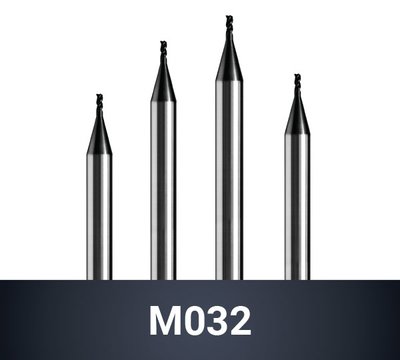

3 Flute | Series M032

Variable helix design improves stability, extends tool life, and improves part quality in challenging applications. 3 Flute Square and Corner Radius configurations available

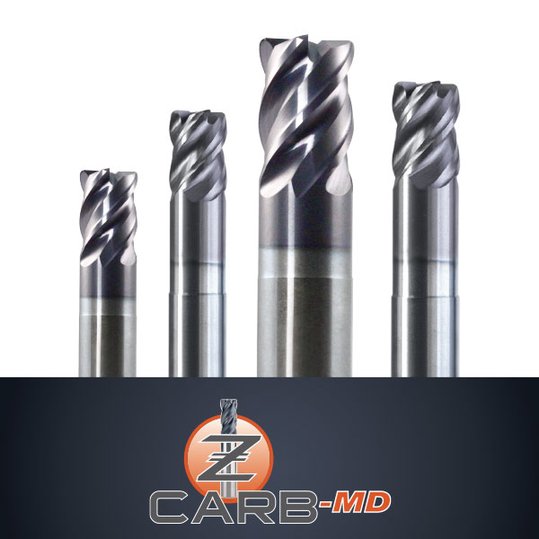

Z-Carb MD

4 Flute End Mills: Negative rake, heavy core, and higher helix for strength and shearing of hard mold & die materials

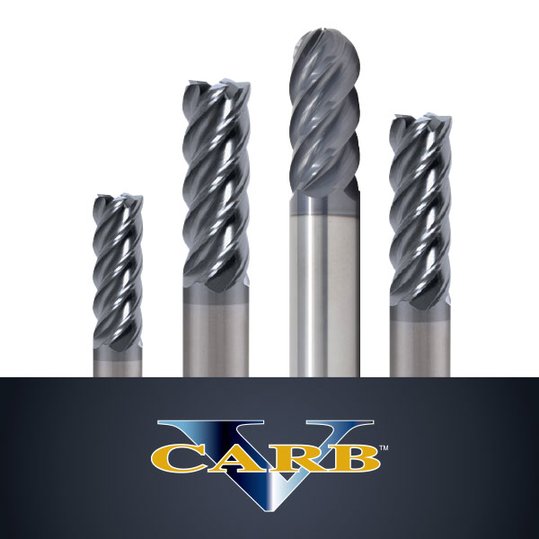

V-Carb

5 Flute End Mills: First choice when peak finish quality is the requirement

Micro Drills

Micro Spotting Drills

4-facet point design, stub length, and mirror finish provide the highest quality spot. Available in Ti-NAMITE®-A coatings and uncoated options for a wide range of materials

2 Flute Micro Drills

4-facet point design stabilizes on entry for superior hole size control and tool life. Available in Ti-NAMITE®-A coatings and uncoated options for a wide range of materials

2 Flute Micro Drills

4-facet point design stabilizes on entry for superior hole size control and tool life (>0.08mm). 2-facet point on 0.08mm and smaller. Mirror finishes improve chip flow as hole depth increases

Coolant-Through Micro Drills

Split point and double margin design provide superior hole finish and size control. Straight through drilling without pecking cycle. Increased tool life and chip control in moderate-to-difficult workpiece materials

Inverse Diameter Micro Drills

4-facet point geometry provides centering assistance upon entry. Wide diameters offer ability to drill larger than average holes than is commonly possible in micro spindles

V-Carb

5 Flute End Mills: First choice when peak finish quality is the requirement

High Performance End Mills

High Performance Drills

High Performance Routers
