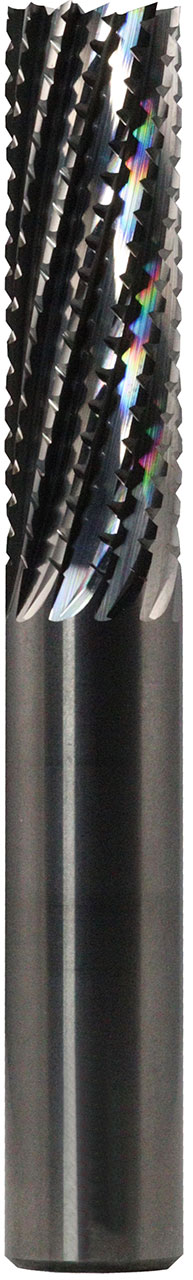

5.00mm Dia, 5 Flute, Router - 83103
SERIES: 20
Series CCR CFRP Router
5.00mm Dia, 15.00mm LOC, 50.00mm OAL, 5.00mm Shank Dia, 5 Flute, 15 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 20, Series CCR CFRP Router - 83103
Feature & Benefits
Multi-Flute Design
Unique Clearance Grind
Left Hand Cutting Available
Available With Or Without End Cut
| Series Description | Series CCR CFRP Router |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Tool Length | Regular |
| Unit (inch/mm) | mm |
| Number of Flutes | 5 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.1969 |
| Cutting Diameter (DC) (mm) | 5.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1969 |
| Shank Diameter (DCON) (mm) | 5.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.5906 |
| Length of Cut (APMX) (mm) | 15.00 |
| Overall Length (LF) (Decimal Inch) | 1.9685 |
| Overall Length (LF) (mm) | 50.00 |
| Shank Length (LS) (Decimal Inch) | 1.3779 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0050 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.130 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | TIB2 (Ti-NAMITE-B) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 15 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| End Style | End Cutting |
| Shipping Weight | 0.0300 |
| Series | 20 |
| Weldon Flat | No |
| US Stock | 0 |
| Shank Length (LS) (mm) | 35.00 |
