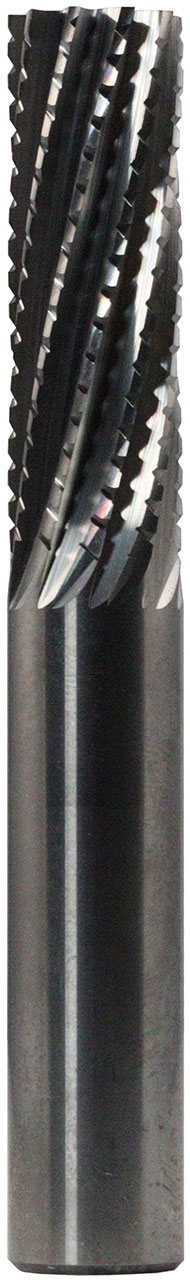

12.00mm Dia, 10 Flute, Router - 82981
SERIES: 31M
Series CCR CFRP Coarse Cut Router
12.00mm Dia, 38.00mm LOC, 89.00mm OAL, 12.00mm Shank Dia, 10 Flute, 15 Degree Helix, Uncoated, Series 31M, Series CCR CFRP Coarse Cut Router - 82981
Feature & Benefits
Multi-Flute Design
Unique Clearance Grind
Available With Or Without End Cut
| Series Description | Series CCR CFRP Coarse Cut Router |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Tool Length | Regular |
| Unit (inch/mm) | mm |
| Number of Flutes | 10 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |

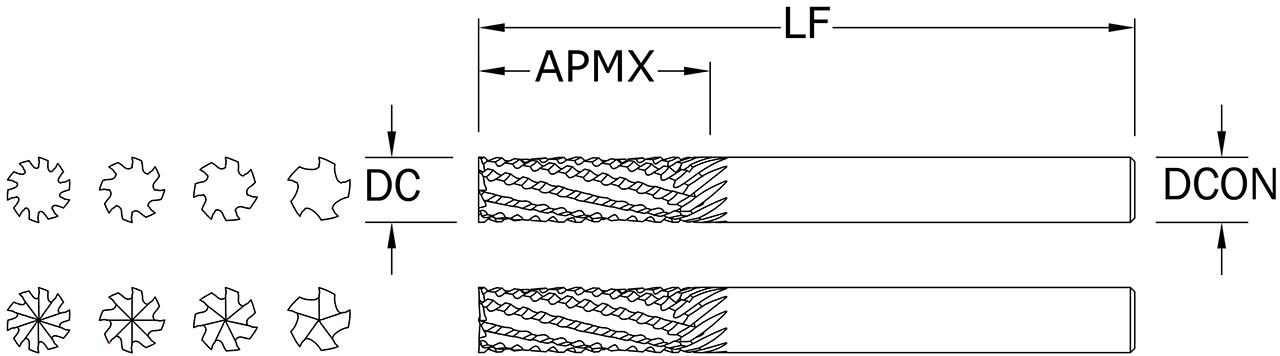

| Cutting Diameter (DC) (Decimal Inch) | 0.4724 |
| Cutting Diameter (DC) (mm) | 12.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.4724 |
| Shank Diameter (DCON) (mm) | 12.00 |
| Length of Cut (APMX) (Decimal Inch) | 1.4961 |
| Length of Cut (APMX) (mm) | 38.00 |
| Overall Length (LF) (Decimal Inch) | 3.5039 |
| Overall Length (LF) (mm) | 89.00 |
| Shank Length (LS) (Decimal Inch) | 2.0000 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0050 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.130 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | Bright/Uncoated |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 15 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| End Style | No End Cutting |
| Shipping Weight | 0.2900 |
| Series | 31M |
| Weldon Flat | No |
| US Stock | 19 |
| Shank Length (LS) (mm) | 50.80 |
Alternate Products
12.00mm Dia, 38.00mm LOC, 89.00mm OAL, 12.00mm Shank Dia, 10 Flute, 15 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 31M, Series CCR CFRP Coarse Cut Router - 83206
List Price: $399.60
U.S. stocked items ship next day
Total Available U.S. :0
12.00mm Dia, 38.00mm LOC, 89.00mm OAL, 12.00mm Shank Dia, 10 Flute, 15 Degree Helix, Di-NAMITE (Diamond) Coated, Series 31M, Series CCR CFRP Coarse Cut Router - 82988
List Price: $699.66
U.S. stocked items ship next day
Total Available U.S. :0
