8.00mm Dia, 7 Flute, Square End End Mill - 74380
SERIES: 77MS
H-Carb
8.00mm Dia, 32.00mm LOC, 8.00mm Shank Dia, 7 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 77MS, H-Carb, Square End End Mill - 74380
Feature & Benefits
Specializes in deep axial trochoidal and high-speed milling applications
Optimized core improves rigidity, chip flow and reduces deflection
| Series Description | H-Carb |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Unit (inch/mm) | mm |
| Number of Flutes | 7 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.3150 |
| Cutting Diameter (DC) (mm) | 8.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.3150 |
| Shank Diameter (DCON) (mm) | 8.00 |
| Length of Cut (APMX) (Decimal Inch) | 1.2598 |
| Length of Cut (APMX) (mm) | 32.00 |
| Overall Length (LF) (Decimal Inch) | 3.3465 |
| Overall Length (LF) (mm) | 85.00 |
| Non-Cutting Center Diameter (NCD) (Decimal Inch) | 0.1067 |
| Non-Cutting Center Diameter (NCD) (mm) | 2.71 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0016 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.040 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Diameter (DCON) Tolerance (Decimal Inch) | +0.0000 / -0.00035 |
| Shank Diameter (DCON) Tolerance (mm) | +0.0000 / -0.009 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | AlTiN (Ti-NAMITE-A) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 37 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| Shipping Weight | 0.1190 |
| Series | 77MS |
| Weldon Flat | No |
| US Stock | 32 |
| Tool Length | Extra Long |
Alternate Products

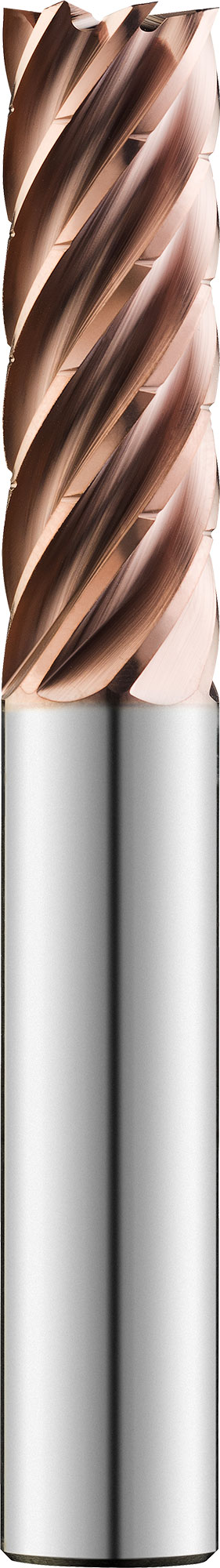

8.00mm Dia, 32.00mm LOC, 8.00mm Shank Dia, 7 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series 77MS, H-Carb, Chip Breaker Square End Mill - 74383
List Price: $102.74
U.S. stocked items ship next day
Total Available U.S. :5

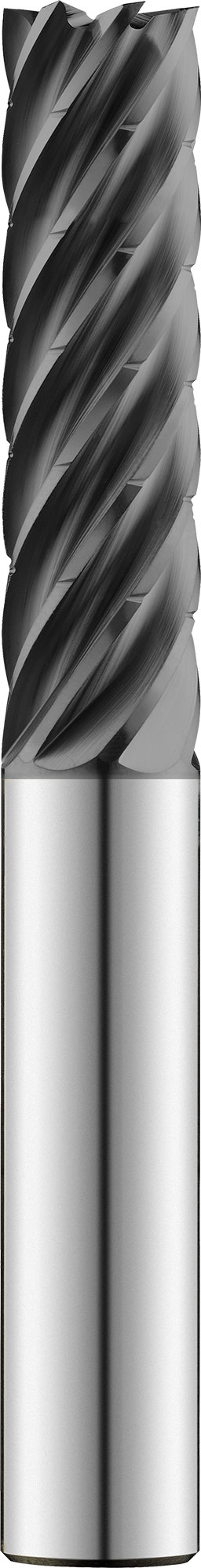

8.00mm Dia, 32.00mm LOC, 8.00mm Shank Dia, 7 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 77MS, H-Carb, Chip Breaker Square End Mill - 74382
List Price: $102.74
U.S. stocked items ship next day
Total Available U.S. :16

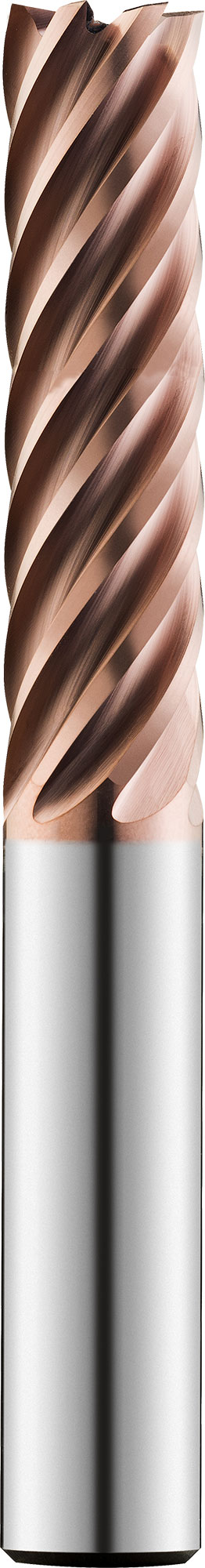

8.00mm Dia, 32.00mm LOC, 8.00mm Shank Dia, 7 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series 77MS, H-Carb, Square End End Mill - 74381
List Price: $90.44
U.S. stocked items ship next day
Total Available U.S. :0
