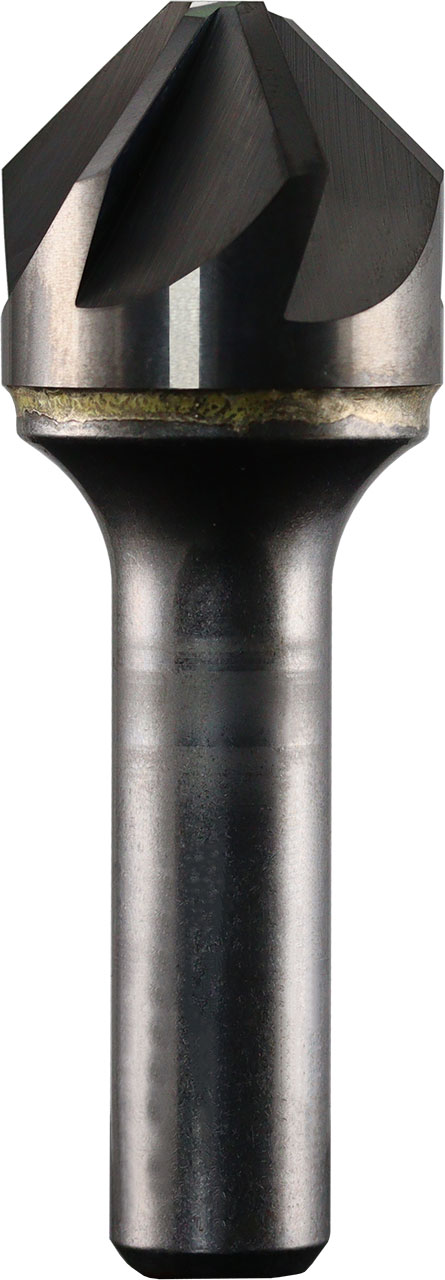

1" Dia, 0.2400" Tip, 82 Degree, 6 Flute, Countersink - 74170
SERIES: 606
General Application Countersink
1" Dia, 0.2400" Tip, 82 Degree, 6 Flute, 0.5001" Shank Dia, Uncoated, Series 606, General Application Countersink - 74170
| Series Description | General Application Countersink |
|---|---|
| High Performance | No |
| Unit (inch/mm) | inch |
| Number of Flutes | 6 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Size | 1" |
| Tip Diameter (DC1) (Decimal Inch) | 0.2400 |
| Tip Diameter (DC1) (mm) | 6.10 |
| Cutting Diameter (DC2) (Decimal Inch) | 1.0000 |
| Cutting Diameter (DC2) (Fractional Inch) | 1 |
| Cutting Diameter (DC2) (mm) | 25.40 |
| Shank Diameter (DCON) (Decimal Inch) | 0.5001 |
| Shank Diameter (DCON) (mm) | 12.70 |
| Flute Length (LCF) (Decimal Inch) | 0.3750 |
| Flute Length (LCF) (Fractional Inch) | 3/8 |
| Flute Length (LCF) (mm) | 9.53 |
| Overall Length (OAL) (Decimal Inch) | 3.0000 |
| Overall Length (OAL) (Fractional Inch) | 3 |
| Overall Length (OAL) (mm) | 76.20 |
| Shank Length (LS) (Decimal Inch) | 1.7500 |
| Shank Length (LS) (Fractional Inch) | 1-3/4 |
| Point Angle (Degree) | 82 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +.00300 / -.00000 |
| Cutting Diameter (DC) Tolerance (mm) | +.0762 / -.0000 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | Bright/Uncoated |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Neutral |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 0 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| Number of Margins | 1 |
| Shipping Weight | 0.4320 |
| Series | 606 |
| Weldon Flat | No |
| US Stock | 0 |
| Shank Length (LS) (mm) | 44.45 |
| Centerline (α) Angle (Degree) | 41.0 |
