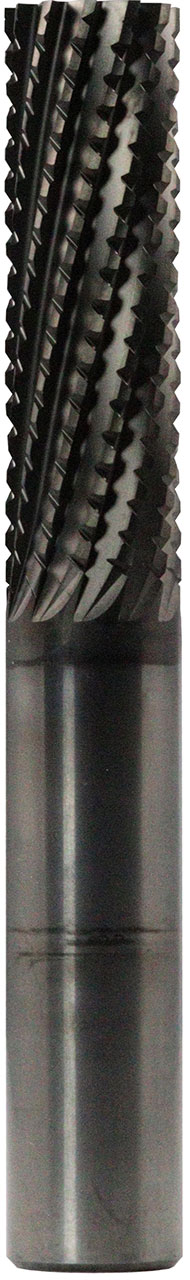

1/4" Dia, 8 Flute, Router - 73013

SERIES: 20

Series CCR CFRP Router

1/4" Dia, 1" LOC, 2-1/2" OAL, 1/4" Shank Dia, 8 Flute, 15 Degree Helix, Di-NAMITE (Diamond) Coated, Series 20, Series CCR CFRP Router - 73013

Feature & Benefits

Multi-Flute Design

Unique Clearance Grind

Left Hand Cutting Available

Available With Or Without End Cut

List Price: $231.89

Total Available U.S. :32

Series Description	Series CCR CFRP Router
High Performance	Yes
End Configuration	Square End
Tool Length	Regular
Unit (inch/mm)	inch
Number of Flutes	8
Primary Workpiece Material	(N) Non-Ferrous Materials
Cutting Diameter (DC) (Decimal Inch)	0.2500
Cutting Diameter (DC) (Fractional Inch)	1/4
Cutting Diameter (DC) (mm)	6.35
Shank Diameter (DCON) (Decimal Inch)	0.2500
Shank Diameter (DCON) (mm)	6.35
Length of Cut (APMX) (Decimal Inch)	1.0000
Length of Cut (APMX) (Fractional Inch)	1
Length of Cut (APMX) (mm)	25.40
Overall Length (LF) (Decimal Inch)	2.5000
Overall Length (LF) (Fractional Inch)	2-1/2
Overall Length (LF) (mm)	63.50
Shank Length (LS) (Decimal Inch)	1.1250
Shank Length (LS) (Fractional Inch)	1-1/8
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0050
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.130
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Coating Description	Diamond (Di-NAMITE)
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Helix Angle	Right Spiral
Helix Angle (Degree)	15
Variable Helix	No
Center Cutting	No
Chip Breaker	No
End Style	No End Cutting
Shipping Weight	0.0630
Series	20
Weldon Flat	No
US Stock	32
Shank Length (LS) (mm)	28.58
Shank Diameter (DCON) (Fractional Inch)	1/4
