3/8" Dia, 6 Flute, Router - 72975
SERIES: 25
Series 25 - CFRP Compression Router
3/8" Dia, 1-1/8" LOC, 2-1/2" OAL, 3/8" Shank Dia, 6 Flute, 30 Degree Helix, Di-NAMITE (Diamond) Coated, Series 25, Series 25 - CFRP Compression Router - 72975
Feature & Benefits
Left Hand Helix
Right Hand Helix
| Series Description | Series 25 - CFRP Compression Router |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Tool Length | Long |
| Unit (inch/mm) | inch |
| Number of Flutes | 6 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |

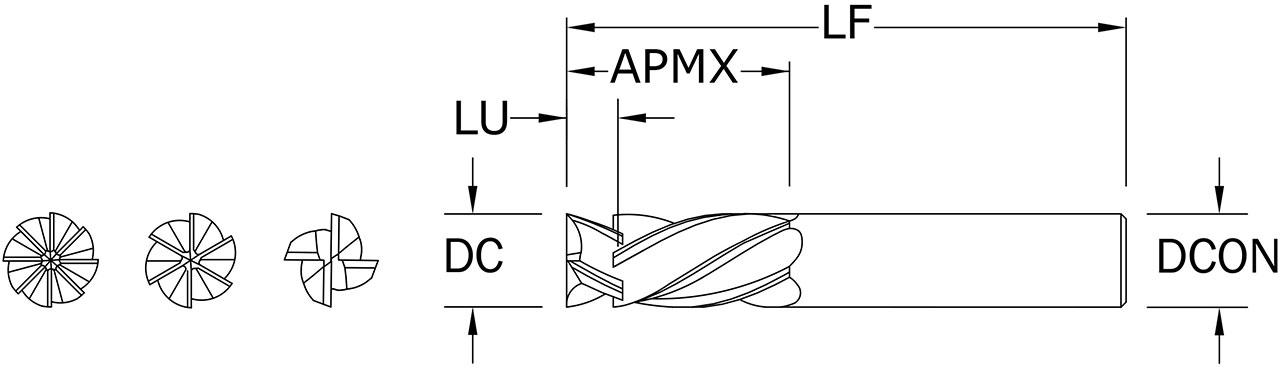

| Cutting Diameter (DC) (Decimal Inch) | 0.3750 |
| Cutting Diameter (DC) (Fractional Inch) | 3/8 |
| Cutting Diameter (DC) (mm) | 9.53 |
| Shank Diameter (DCON) (Decimal Inch) | 0.3750 |
| Shank Diameter (DCON) (mm) | 9.53 |
| Length of Cut (APMX) (Decimal Inch) | 1.1250 |
| Length of Cut (APMX) (Fractional Inch) | 1-1/8 |
| Length of Cut (APMX) (mm) | 28.58 |
| Overall Length (LF) (Decimal Inch) | 2.5000 |
| Overall Length (LF) (Fractional Inch) | 2-1/2 |
| Overall Length (LF) (mm) | 63.50 |
| Shank Length (LS) (Decimal Inch) | 1.3750 |
| Shank Length (LS) (Fractional Inch) | 1-3/8 |
| Split Length (SPTL) (Fractional Inch) | 17/64 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0030 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.080 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | Diamond (Di-NAMITE) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| KPT Micro Crossover (Old Material Number) | 8522441 |
| KPT Micro Crossover (Part Number) | 1890-3750V1125 |
| Shipping Weight | 0.1320 |
| Series | 25 |
| Weldon Flat | No |
| US Stock | 0 |
| Shank Length (LS) (mm) | 34.93 |
| Shank Diameter (DCON) (Fractional Inch) | 3/8 |
