1/4" Dia, 4 Flute, Router - 72970
SERIES: 25
Series 25 - CFRP Compression Router
1/4" Dia, 1" LOC, 2-1/2" OAL, 1/4" Shank Dia, 4 Flute, 30 Degree Helix, Uncoated, Series 25, Series 25 - CFRP Compression Router - 72970
Feature & Benefits
Left Hand Helix
Right Hand Helix
| Series Description | Series 25 - CFRP Compression Router |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Tool Length | Long |
| Unit (inch/mm) | inch |
| Number of Flutes | 4 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.2500 |
| Cutting Diameter (DC) (Fractional Inch) | 1/4 |
| Cutting Diameter (DC) (mm) | 6.35 |
| Shank Diameter (DCON) (Decimal Inch) | 0.2500 |
| Shank Diameter (DCON) (mm) | 6.35 |
| Length of Cut (APMX) (Decimal Inch) | 1.0000 |
| Length of Cut (APMX) (Fractional Inch) | 1 |
| Length of Cut (APMX) (mm) | 25.40 |
| Overall Length (LF) (Decimal Inch) | 2.5000 |
| Overall Length (LF) (Fractional Inch) | 2-1/2 |
| Overall Length (LF) (mm) | 63.50 |
| Shank Length (LS) (Decimal Inch) | 1.5000 |
| Shank Length (LS) (Fractional Inch) | 1-1/2 |
| Split Length (SPTL) (Fractional Inch) | 11/64 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0030 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.080 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | Bright/Uncoated |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.0620 |
| Series | 25 |
| Weldon Flat | No |
| US Stock | 150 |
| Shank Length (LS) (mm) | 38.10 |
| Shank Diameter (DCON) (Fractional Inch) | 1/4 |
Alternate Products

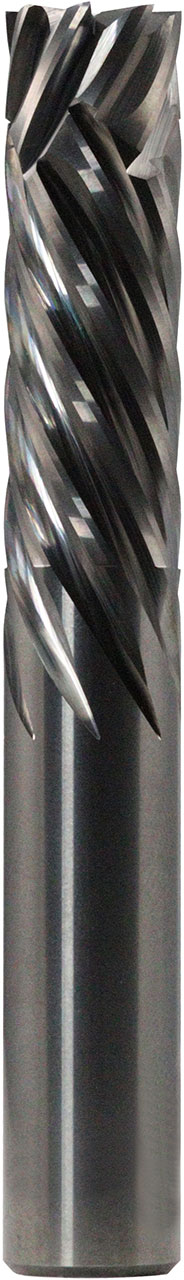

1/4" Dia, 1" LOC, 2-1/2" OAL, 1/4" Shank Dia, 4 Flute, 30 Degree Helix, Di-NAMITE (Diamond) Coated, Series 25, Series 25 - CFRP Compression Router - 72971
