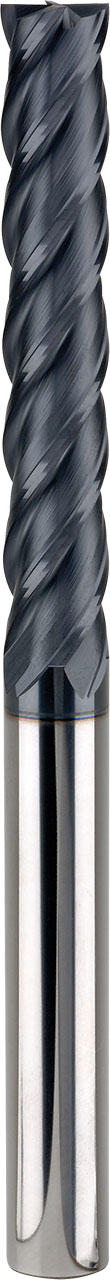

3.00mm Dia, 4 Flute, Square End End Mill - 70551
SERIES: 7MS
Series 7
3.00mm Dia, 25.00mm LOC, 3.00mm Shank Dia, 4 Flute, 38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series 7MS, Series 7, Square End End Mill - 70551
Feature & Benefits
Variable pitch allows for improved chatter suppression along with improved surface finish and enhanced tool life
Raised land and increased core diameter designed to enhance tool life and decrease tool deflection
Recommended for materials ≤ 45 HRc (≤ 420 Bhn)
| Series Description | Series 7 |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Unit (inch/mm) | mm |
| Number of Flutes | 4 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

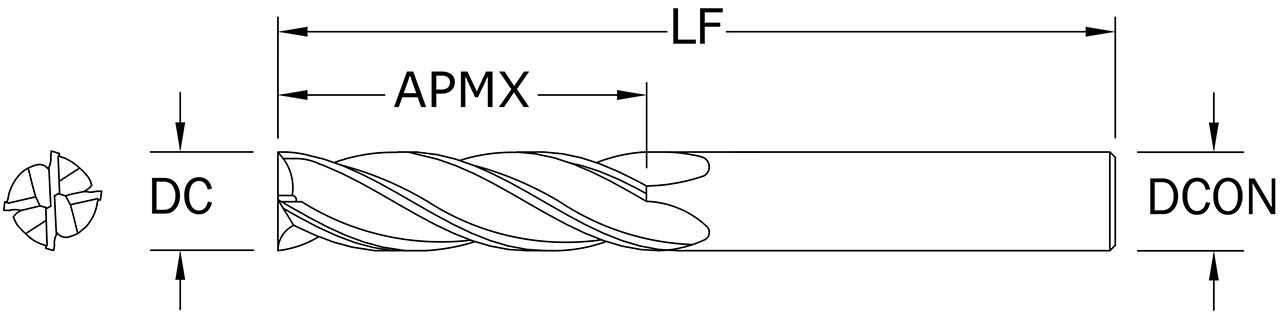

| Cutting Diameter (DC) (Decimal Inch) | 0.1181 |
| Cutting Diameter (DC) (mm) | 3.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1181 |
| Shank Diameter (DCON) (mm) | 3.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.9843 |
| Length of Cut (APMX) (mm) | 25.00 |
| Overall Length (LF) (Decimal Inch) | 2.9528 |
| Overall Length (LF) (mm) | 75.00 |
| Shank Length (LS) (Decimal Inch) | 1.9660 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | TX (Ti-NAMITE-X) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 38 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.0300 |
| Series | 7MS |
| Weldon Flat | No |
| US Stock | 0 |
| Shank Length (LS) (mm) | 49.94 |
| Tool Length | Extra Long |
