3.00mm Dia, 118 Degree Point, Solid Carbide Drill - 61015
SERIES: 101
General Application Drill
3.00mm Dia, 118 Degree Point, 3.00mm Shank Dia, 61.00mm OAL, 2 Flute, 5xD, Uncoated, Series 101, Solid Carbide Drill - 61015
| Series Description | General Application Drill |
|---|---|
| High Performance | No |
| Unit (inch/mm) | mm |
| Number of Flutes | 2 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Reach (xD) | 5xD |
| Size | 3.00mm |

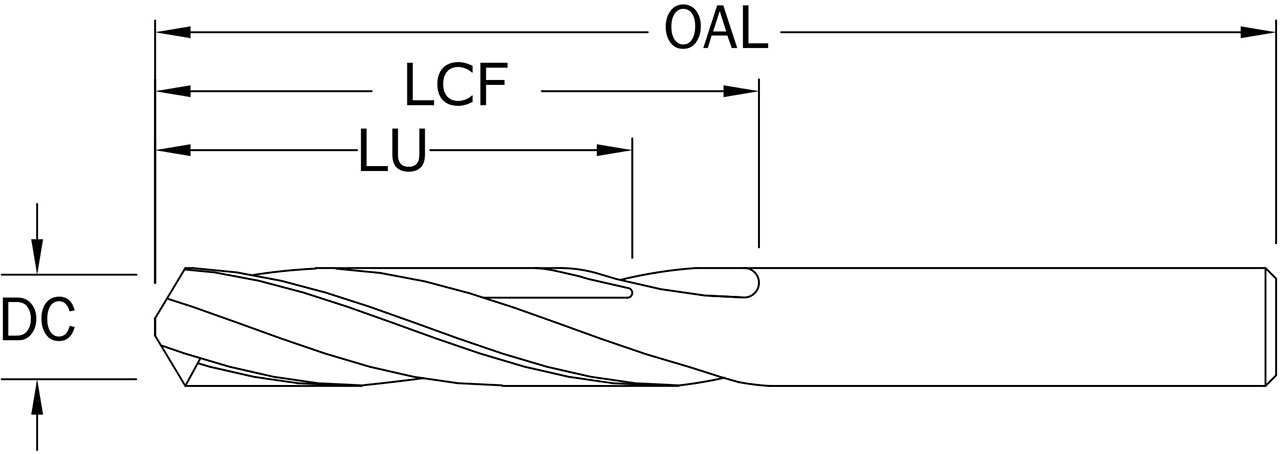

| Cutting Diameter (DC) (Decimal Inch) | 0.1181 |
| Cutting Diameter (DC) (mm) | 3.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1181 |
| Shank Diameter (DCON) (mm) | 3.00 |
| Flute Length (LCF) (Decimal Inch) | 1.2992 |
| Flute Length (LCF) (mm) | 33.00 |
| Overall Length (OAL) (Decimal Inch) | 2.4016 |
| Overall Length (OAL) (mm) | 61.00 |
| Shank Length (LS) (Decimal Inch) | 1.1000 |
| Point Angle (Degree) | 118 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +.00000 / -.00050 |
| Cutting Diameter (DC) Tolerance (mm) | +.0000 / -.0127 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | Bright/Uncoated |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 20 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| DIN Standard | DIN 338 |
| Number of Margins | 2 |
| Shipping Weight | 0.0120 |
| Series | 101 |
| Weldon Flat | No |
| US Stock | 128 |
| Shank Length (LS) (mm) | 27.94 |
| Usable Length (LU) (Decimal Inch) | 1.0236 |
| Usable Length (LU) (mm) | 26.00 |
