#16, 150 Degree Point, Solid Carbide Drill - 58036

SERIES: 103

General Application Drill

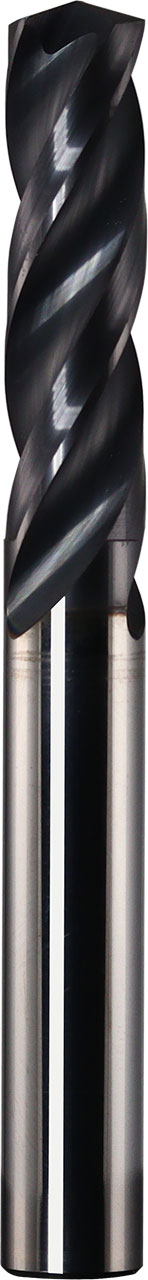

#16, 150 Degree Point, 0.1770" Shank Dia, 2-3/4" OAL, 3 Flute, 5xD, Ti-NAMITE-A (AlTiN) Coated, Series 103, Solid Carbide Drill - 58036

Total Available U.S. :6

Series Description	General Application Drill
Unit (inch/mm)	inch
Number of Flutes	3
Primary Workpiece Material	(P) Steel\|(K) Cast Iron\|(N) Non-Ferrous Materials
Secondary Workpiece Material	(H) Hardened Materials
Reach (xD)	5xD
Size	#16
Cutting Diameter (DC) (Decimal Inch)	0.1770
Cutting Diameter (DC) (mm)	4.50
Cutting Diameter (DC) (Wire)	#16
Shank Diameter (DCON) (Decimal Inch)	0.1770
Shank Diameter (DCON) (mm)	4.50
Usable Length (LU) (Fractional Inch)	1-19/64
Flute Length (LCF) (Decimal Inch)	1.6250
Flute Length (LCF) (Fractional Inch)	1-5/8
Flute Length (LCF) (mm)	41.28
Overall Length (OAL) (Decimal Inch)	2.7500
Overall Length (OAL) (Fractional Inch)	2-3/4
Overall Length (OAL) (mm)	69.85
Shank Length (LS) (Decimal Inch)	1.0950
Point Angle (Degree)	150
Cutting Diameter (DC) Tolerance (Decimal Inch)	+.00000 / -.00050
Cutting Diameter (DC) Tolerance (mm)	+.0000 / -.0127
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Helix Angle	Right Spiral
Helix Angle (Degree)	30
Center Cutting	No
Number of Margins	3
Shipping Weight	0.0340
Series	103
US Stock	6
Shank Length (LS) (mm)	27.81
Usable Length (LU) (Decimal Inch)	1.2969
Usable Length (LU) (mm)	32.94
Coating Description	AlTiN (Ti-NAMITE-A)
Double Margins (Yes/No)	No
Flute Type	Spiral

Alternate Products

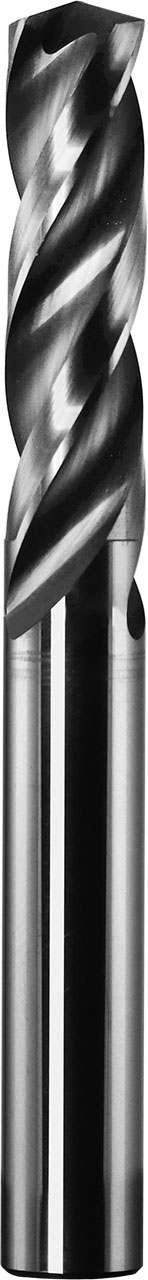

#16, 150 Degree Point, 0.1770" Shank Dia, 2-3/4" OAL, 3 Flute, 5xD, Uncoated, Series 103, Solid Carbide Drill - 53016

Total Available U.S. :9
