#00 0.0250” Dia, 118 Degree, 2 Flute, Countersink - 57015

SERIES: 301

General Application Drill and Countersink Combo

#00 0.0250” Dia, 118 Degree, 2 Flute, 1/8" Body Dia, Ti-NAMITE-A (AlTiN) Coated, Series 301, General Application Drill and Countersink Combo - 57015

Total Available U.S. :32

Series Description	General Application Drill and Countersink Combo
Unit (inch/mm)	inch
Number of Flutes	2
Primary Workpiece Material	(P) Steel\|(M) Stainless Steel\|(K) Cast Iron\|(N) Non-Ferrous Materials\|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
Size	#00

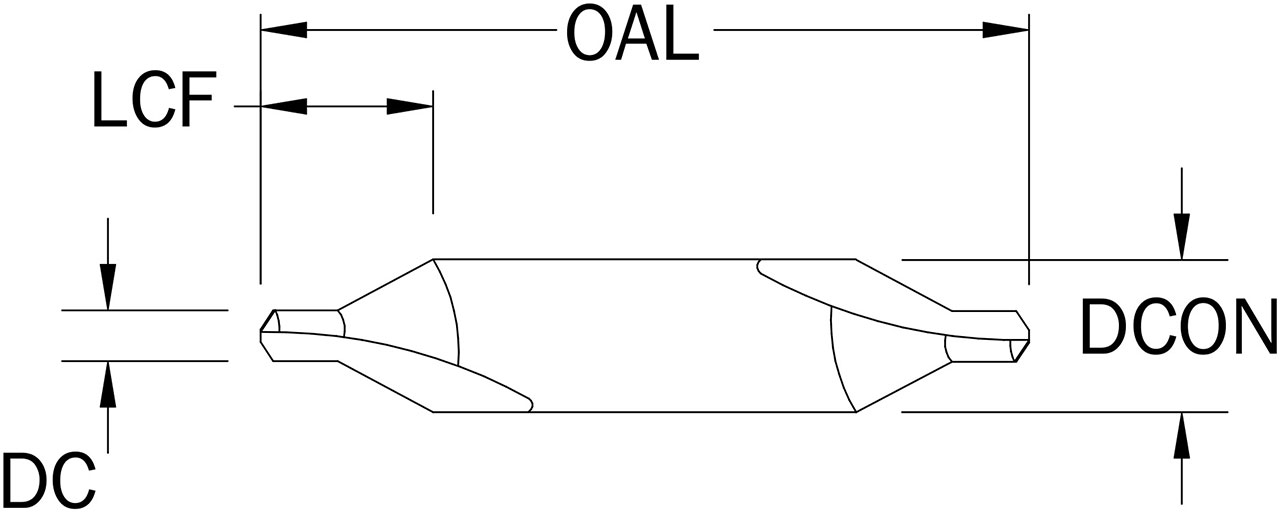

Cutting Diameter (DC) (Decimal Inch)	0.0250
Cutting Diameter (DC) (mm)	0.64
Cutting Diameter (DC) (Wire)	#00
Body Diameter (DCON) (Decimal Inch)	0.1250
Body Diameter (DCON) (Fractional Inch)	1/8
Body Diameter (DCON) (mm)	3.18
Flute Length (LCF) (Decimal Inch)	0.3120
Flute Length (LCF) (mm)	7.92
Overall Length (OAL) (Decimal Inch)	1.5000
Overall Length (OAL) (Fractional Inch)	1-1/2
Overall Length (OAL) (mm)	38.10
Shank Length (LS) (Decimal Inch)	0.8760
Point Angle (Degree)	118
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Helix Angle (Degree)	0
Variable Helix	No
Center Cutting	No
Chip Breaker	No
Chamfer Angle (a) (Degree)	30
Primary Chamfer Angle (a) (Degree)	30
Number of Margins	2
Shipping Weight	0.0120
Series	301
Weldon Flat	No
US Stock	32
Shank Length (LS) (mm)	22.25
Coating Description	AlTiN (Ti-NAMITE-A)
Self Centering	Yes
Double Margins (Yes/No)	No
Flute Type	Straight

Alternate Products

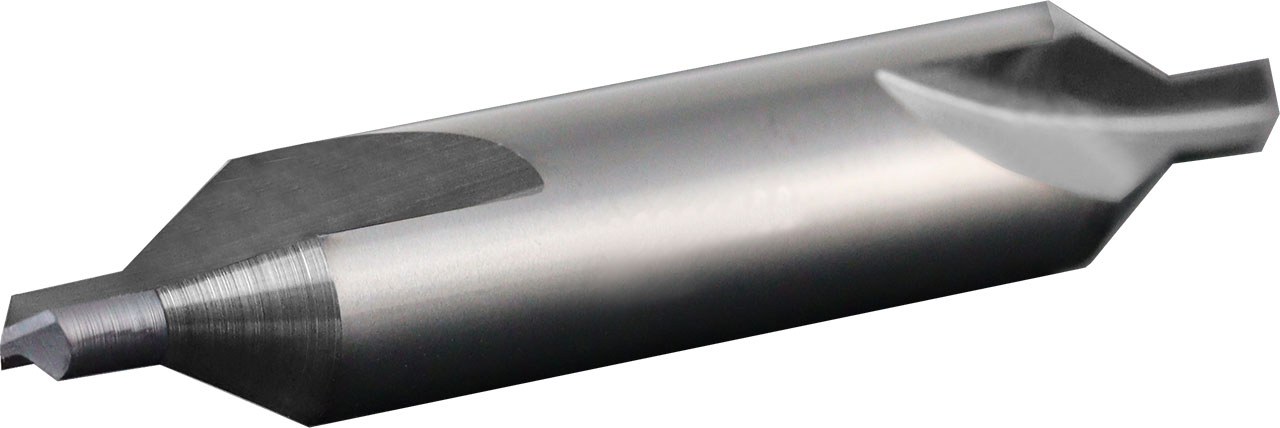

#00 0.0250” Dia, 118 Degree, 2 Flute, 1/8" Body Dia, Uncoated, Series 301, General Application Drill and Countersink Combo - 57005
