12.00mm Dia, 4 Flute, Corner Radius End Mill - 46829
SERIES: ZPMC
Z-Carb-AP
12.00mm Dia, 15.00mm LOC, 48.01mm Reach, 12.00mm Shank Dia, 3.00mm Radius, 4 Flute, 35-38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series ZPMC, Z-Carb-AP, Corner Radius End Mill - 46829
Feature & Benefits
Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
Unequal helix design changes the cutting angle to improve harmonics
Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
Long reach design allows for deeper and faster cuts
| Series Description | Z-Carb-AP |
|---|---|
| High Performance | Yes |
| End Configuration | Corner Radius |
| Unit (inch/mm) | mm |
| Number of Flutes | 4 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

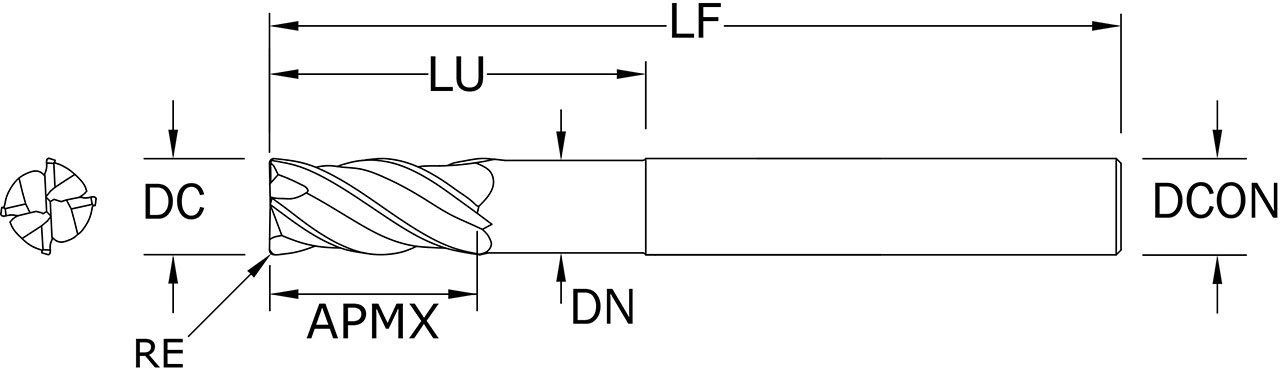

| Cutting Diameter (DC) (Decimal Inch) | 0.4724 |
| Cutting Diameter (DC) (mm) | 12.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.4724 |
| Shank Diameter (DCON) (mm) | 12.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.5906 |
| Length of Cut (APMX) (mm) | 15.00 |
| Reach (LU) (Decimal Inch) | 1.8900 |
| Reach (LU) (mm) | 48.01 |
| Overall Length (LF) (Decimal Inch) | 3.9370 |
| Overall Length (LF) (mm) | 100.00 |
| Neck Diameter (DN) (Decimal Inch) | 0.4520 |
| Neck Diameter (DN) (mm) | 11.48 |
| Corner Radius (RE) (Decimal Inch) | 0.1181 |
| Corner Radius (RE) (mm) | 3.00 |
| Shank Length (LS) (Decimal Inch) | 2.0470 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Corner Radius (RE) Tolerance (mm) | +0.000/-0.050 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | TX (Ti-NAMITE-X) |
| Additional Geometry | Flute Spacing Unequal / Right Hand Cut Direction (RHC) |
| Rake Angle | Variable |
| Helix Angle | Variable Right Spiral |
| Helix Angle (Degree) | 35-38 |
| Variable Helix | Yes |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.3370 |
| Series | ZPMC |
| Weldon Flat | No |
| US Stock | 10 |
| Shank Length (LS) (mm) | 51.99 |
| Tool Length | Long Reach Neck |
