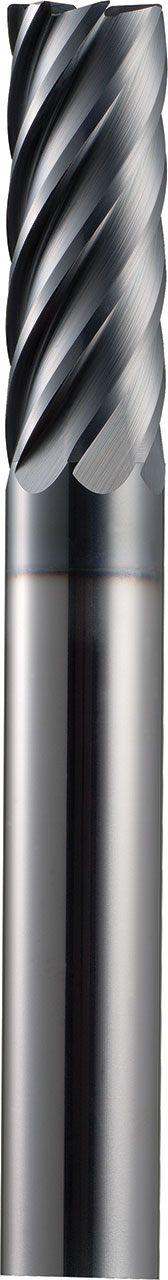

10.00mm Dia, 7 Flute, Square End End Mill - 46622
SERIES: 66MS
Multi-Carb
10.00mm Dia, 22.00mm LOC, 10.00mm Shank Dia, 7 Flute, 35 Degree Helix, Ti-NAMITE-X (TX) Coated, Series 66MS, Multi-Carb, Square End End Mill - 46622
Feature & Benefits
Heavy core and rigid design allow for straight walls
High flute count design results in smoother cutting performance and enhanced tool life in precise finishing applications
Enhanced corner geometry with tight tolerance corner radii
Recommended for materials ≤ 45 HRc (≤ 420 Bhn)
| Series Description | Multi-Carb |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Unit (inch/mm) | mm |
| Number of Flutes | 7 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.3937 |
| Cutting Diameter (DC) (mm) | 10.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.3937 |
| Shank Diameter (DCON) (mm) | 10.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.8661 |
| Length of Cut (APMX) (mm) | 22.00 |
| Overall Length (LF) (Decimal Inch) | 2.9528 |
| Overall Length (LF) (mm) | 75.00 |
| Shank Length (LS) (Decimal Inch) | 2.0911 |
| Non-Cutting Center Diameter (NCD) (Decimal Inch) | 0.0799 |
| Non-Cutting Center Diameter (NCD) (mm) | 2.03 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 35 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| Shipping Weight | 0.1860 |
| Series | 66MS |
| Weldon Flat | No |
| US Stock | 40 |
| Shank Length (LS) (mm) | 53.11 |
| Tool Length | Regular |
| Coating Description | TX (Ti-NAMITE-X) |
| Flute Type | Spiral |
