8.00mm Dia, 4 Flute, Square End End Mill - 46362
SERIES: Z1MS
Z-Carb
8.00mm Dia, 19.00mm LOC, 8.00mm Shank Dia, 4 Flute, 35-38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series Z1MS, Z-Carb, Square End End Mill - 46362
Feature & Benefits
One Of A Kind Geometry
Unequal Flute Spacing
Optimized Rake Angle
Enhanced Corner Geometry
| Series Description | Z-Carb |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Unit (inch/mm) | mm |
| Number of Flutes | 4 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

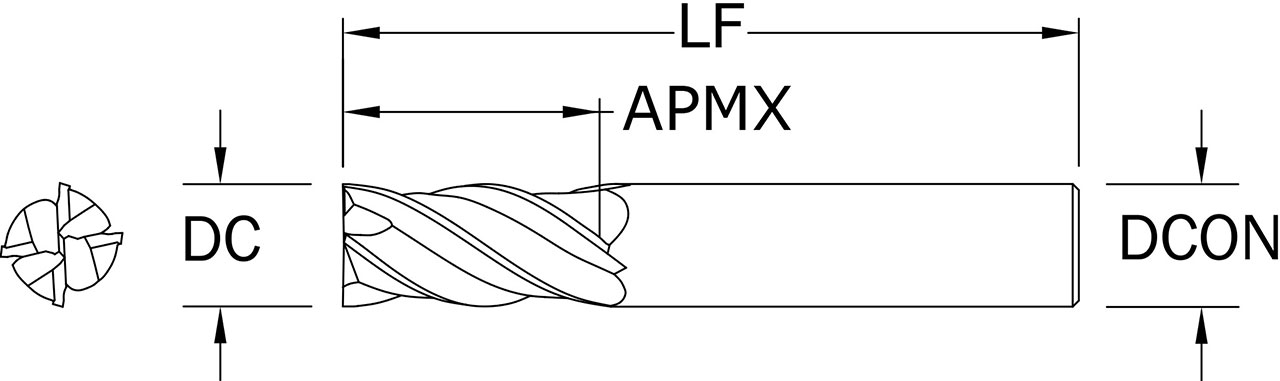

| Cutting Diameter (DC) (Decimal Inch) | 0.3150 |
| Cutting Diameter (DC) (mm) | 8.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.3150 |
| Shank Diameter (DCON) (mm) | 8.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.7480 |
| Length of Cut (APMX) (mm) | 19.00 |
| Overall Length (LF) (Decimal Inch) | 2.4803 |
| Overall Length (LF) (mm) | 63.00 |
| Shank Length (LS) (Decimal Inch) | 1.7320 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0016 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.040 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | TX (Ti-NAMITE-X) |
| Additional Geometry | Flute Spacing Unequal / Right Hand Cut Direction (RHC) |
| Rake Angle | Variable |
| Helix Angle | Variable Right Spiral |
| Helix Angle (Degree) | 35-38 |
| Variable Helix | Yes |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.0940 |
| Series | Z1MS |
| Weldon Flat | No |
| US Stock | 736 |
| Shank Length (LS) (mm) | 43.99 |
| Tool Length | Regular |
