12.00mm Dia, 4 Flute, Square End End Mill - 45493
SERIES: 54S
General Application End Mill - High Shear

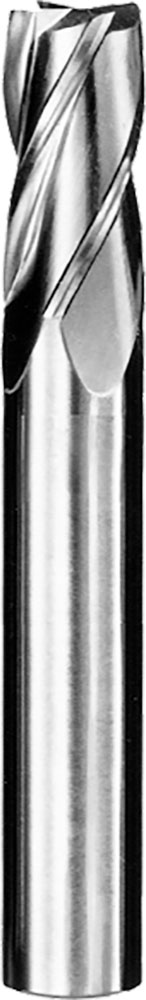

12.00mm Dia, 26.00mm LOC, 12.00mm Shank Dia, 4 Flute, 30 Degree Helix, Uncoated, Series 54S, High Shear, Square End End Mill - 45493
| Series Description | General Application End Mill - High Shear |
|---|---|
| End Configuration | Square End |
| Unit (inch/mm) | mm |
| Number of Flutes | 4 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |

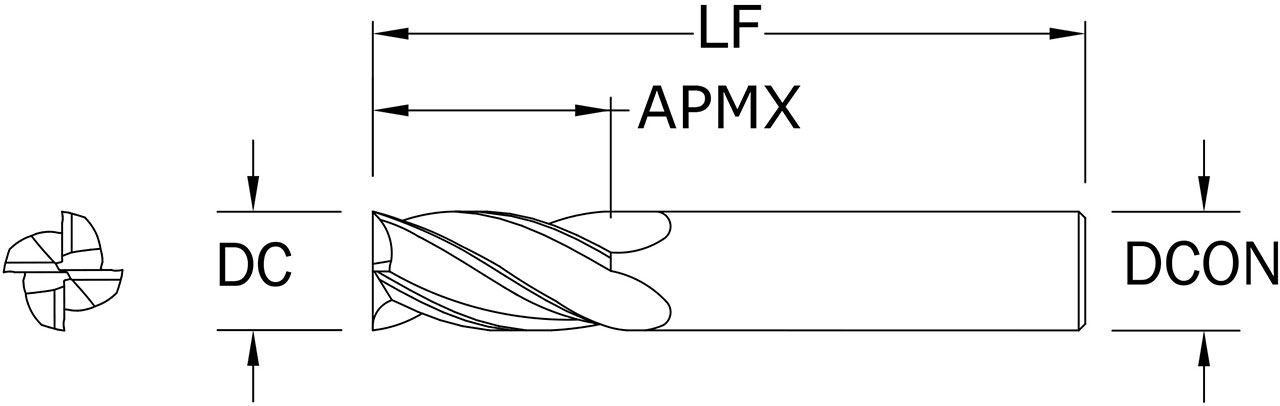

| Cutting Diameter (DC) (Decimal Inch) | 0.4724 |
| Cutting Diameter (DC) (mm) | 12.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.4724 |
| Shank Diameter (DCON) (mm) | 12.00 |
| Length of Cut (APMX) (Decimal Inch) | 1.0236 |
| Length of Cut (APMX) (mm) | 26.00 |
| Overall Length (LF) (Decimal Inch) | 3.2677 |
| Overall Length (LF) (mm) | 83.00 |
| Shank Length (LS) (Decimal Inch) | 2.2460 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.2690 |
| Series | 54S |
| Weldon Flat | No |
| US Stock | 11 |
| Shank Length (LS) (mm) | 57.05 |
| Tool Length | Regular |
| Coating Description | Bright/Uncoated |
| Flute Type | Spiral |
Alternate Products

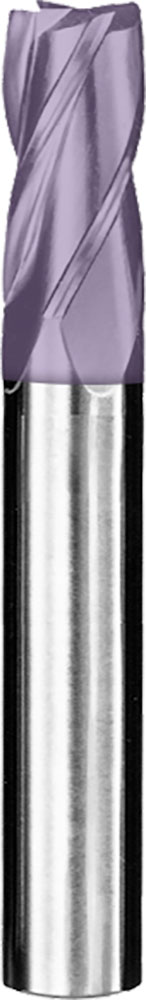

12.00mm Dia, 26.00mm LOC, 12.00mm Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-C (TiCN) Coated, Series 54S, High Shear, Square End End Mill - 45494
U.S. stocked items ship next day
Total Available U.S. :0
