6.00mm Dia, 6 Flute, Square End End Mill - 45100
SERIES: 51S
T-Carb

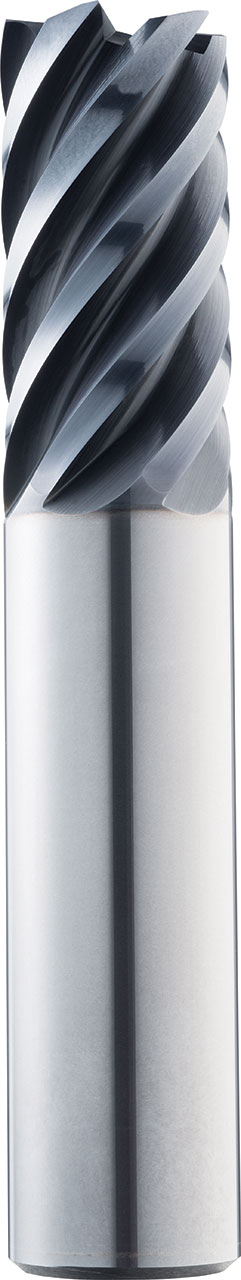

6.00mm Dia, 19.00mm LOC, 6.00mm Shank Dia, 6 Flute, 41 Degree Helix, Ti-NAMITE-X (TX) Coated, Series 51S, T-Carb, Square End End Mill - 45100
Feature & Benefits
Engineered for High Speed Milling using Trochoidal and Peel Milling techniques
Eccentric relief provides superior strength and smoother surface finish
Enhanced corner geometry with tight tolerance corner radii
Recommended for materials ≤ 45 HRc (≤ 420 Bhn)
| Series Description | T-Carb |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Unit (inch/mm) | mm |
| Number of Flutes | 6 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

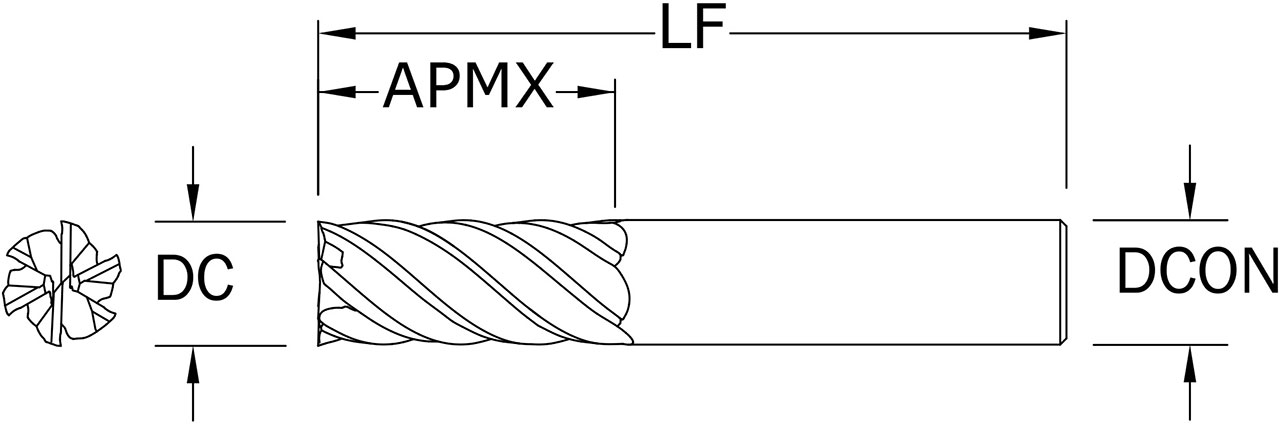

| Cutting Diameter (DC) (Decimal Inch) | 0.2362 |
| Cutting Diameter (DC) (mm) | 6.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.2362 |
| Shank Diameter (DCON) (mm) | 6.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.7480 |
| Length of Cut (APMX) (mm) | 19.00 |
| Overall Length (LF) (Decimal Inch) | 2.4803 |
| Overall Length (LF) (mm) | 63.00 |
| Shank Length (LS) (Decimal Inch) | 1.7323 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | TX (Ti-NAMITE-X) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 41 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.0590 |
| Series | 51S |
| Weldon Flat | No |
| US Stock | 25 |
| Shank Length (LS) (mm) | 44.00 |
| Tool Length | Long |
