12.00mm Dia, 3 Flute, Corner Radius End Mill - 44784
SERIES: 43ML
S-Carb
12.00mm Dia, 16.00mm LOC, 40.01mm Reach, 12.00mm Shank Dia, 2.00mm Radius, 3 Flute, 38 Degree Helix, Uncoated, Series 43ML, S-Carb, Corner Radius End Mill - 44784
Feature & Benefits
Circular land allows for increased control at various speed and feed rates and reduces chatter
Symmetrical end gashing for excellent balance at high speeds and aggressive plunging capability
Open fluting for deep slotting and profiling
Necked design with blended diameter transitions provide clearance to reach
Enhanced corner geometry with tight tolerance corner radii
Recommended for materials ≤ 150 Bhn (≤ 7 HRc)
| Series Description | S-Carb |
|---|---|
| High Performance | Yes |
| End Configuration | Corner Radius |
| Unit (inch/mm) | mm |
| Number of Flutes | 3 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Secondary Workpiece Material | Plastics & Composites |

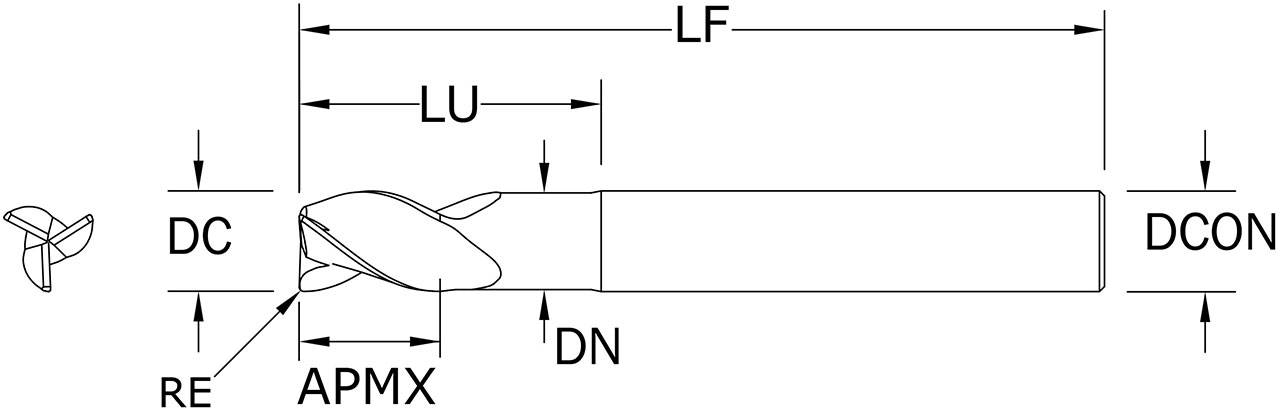

| Cutting Diameter (DC) (Decimal Inch) | 0.4724 |
| Cutting Diameter (DC) (mm) | 12.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.4724 |
| Shank Diameter (DCON) (mm) | 12.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.6299 |
| Length of Cut (APMX) (mm) | 16.00 |
| Reach (LU) (Decimal Inch) | 1.5750 |
| Reach (LU) (mm) | 40.01 |
| Overall Length (LF) (Decimal Inch) | 3.9370 |
| Overall Length (LF) (mm) | 100.00 |
| Neck Diameter (DN) (Decimal Inch) | 0.4519 |
| Neck Diameter (DN) (mm) | 11.48 |
| Corner Radius (RE) (Decimal Inch) | 0.0787 |
| Corner Radius (RE) (mm) | 2.00 |
| Shank Length (LS) (Decimal Inch) | 3.3071 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.00043 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.011 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Corner Radius (RE) Tolerance (mm) | +0.000/-0.050 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | Bright/Uncoated |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 38 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.3250 |
| Series | 43ML |
| Weldon Flat | No |
| US Stock | 39 |
| Shank Length (LS) (mm) | 84.00 |
| Tool Length | Long Reach Neck |
