6.00mm Dia, 3 Flute, Square End End Mill - 44702

SERIES: 43MS

S-Carb

6.00mm Dia, 13.00mm LOC, 6.00mm Shank Dia, 3 Flute, 38 Degree Helix, Uncoated, Series 43MS, S-Carb, Square End End Mill - 44702

Feature & Benefits

Circular land allows for increased control at various speed and feed rates and reduces chatter

Symmetrical end gashing for excellent balance at high speeds and aggressive plunging capability

Open fluting for deep slotting and profiling

Enhanced corner geometry with tight tolerance corner radii

Recommended for materials ≤ 150 Bhn (≤ 7 HRc)

List Price: $48.65

Total Available U.S. :270

Series Description	S-Carb
High Performance	Yes
End Configuration	Square End
Unit (inch/mm)	mm
Number of Flutes	3
Primary Workpiece Material	(N) Non-Ferrous Materials
Secondary Workpiece Material	Plastics & Composites
Cutting Diameter (DC) (Decimal Inch)	0.2362
Cutting Diameter (DC) (mm)	6.00
Shank Diameter (DCON) (Decimal Inch)	0.2362
Shank Diameter (DCON) (mm)	6.00
Length of Cut (APMX) (Decimal Inch)	0.5118
Length of Cut (APMX) (mm)	13.00
Overall Length (LF) (Decimal Inch)	2.8346
Overall Length (LF) (mm)	72.00
Shank Length (LS) (Decimal Inch)	2.3228
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.00032
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.008
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Coating Description	Bright/Uncoated
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Helix Angle	Right Spiral
Helix Angle (Degree)	38
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.0600
Series	43MS
Weldon Flat	No
US Stock	270
Shank Length (LS) (mm)	59.00
Tool Length	Regular

Alternate Products

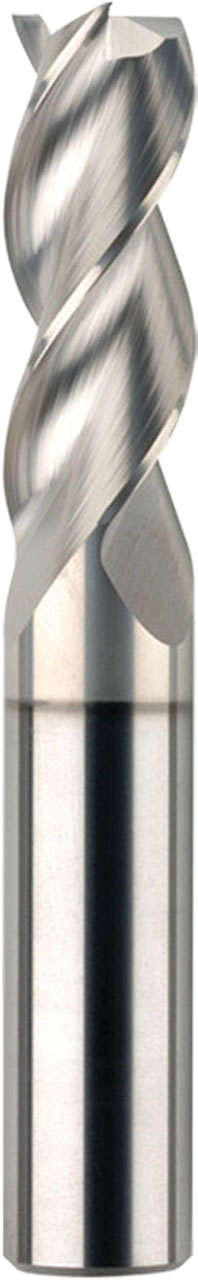

6.00mm Dia, 13.00mm LOC, 6.00mm Shank Dia, 3 Flute, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 43MS, S-Carb, Square End End Mill - 44716
