10.00mm Dia, 2 Flute, Ball Nose End Mill - 44583
SERIES: 47MQ
S-Carb
10.00mm Dia, 12.00mm LOC, 54.00mm Reach, 10.00mm Shank Dia, 5.00mm Radius, 2 Flute, 35 Degree Helix, Uncoated, Series 47MQ, S-Carb, Ball Nose End Mill - 44583
Feature & Benefits
Symmetrical Flute Design
Circular Land
Open Fluting
| Series Description | S-Carb |
|---|---|
| High Performance | Yes |
| End Configuration | Ball Nose |
| Unit (inch/mm) | mm |
| Number of Flutes | 2 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Secondary Workpiece Material | Plastics & Composites |

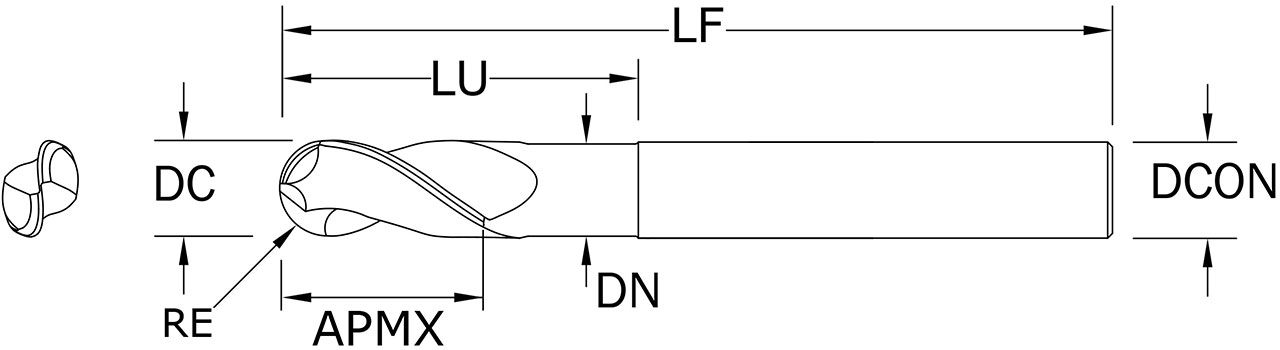

| Cutting Diameter (DC) (Decimal Inch) | 0.3937 |
| Cutting Diameter (DC) (mm) | 10.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.3937 |
| Shank Diameter (DCON) (mm) | 10.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.4724 |
| Length of Cut (APMX) (mm) | 12.00 |
| Reach (LU) (Decimal Inch) | 2.1260 |
| Reach (LU) (mm) | 54.00 |
| Overall Length (LF) (Decimal Inch) | 3.9370 |
| Overall Length (LF) (mm) | 100.00 |
| Neck Diameter (DN) (Decimal Inch) | 0.3787 |
| Neck Diameter (DN) (mm) | 9.62 |
| Corner Radius (RE) (Decimal Inch) | 0.1969 |
| Corner Radius (RE) (mm) | 5.00 |
| Shank Length (LS) (Decimal Inch) | 3.4646 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.00035 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.009 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0005/-0.0005 |
| Corner Radius (RE) Tolerance (mm) | +0.013/-0.013 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 35 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.2260 |
| Series | 47MQ |
| Weldon Flat | No |
| US Stock | 22 |
| Shank Length (LS) (mm) | 88.00 |
| Tool Length | Stub |
| Coating Description | Bright/Uncoated |
| Flute Type | Spiral |
Alternate Products

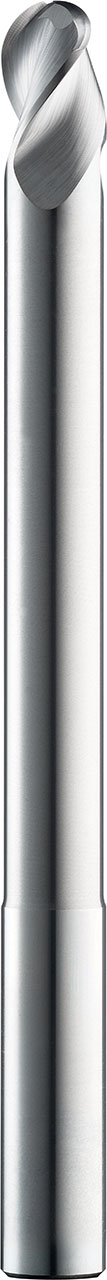

10.00mm Dia, 12.00mm LOC, 54.00mm Reach, 10.00mm Shank Dia, 5.00mm Radius, 2 Flute, 35 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 47MQ, S-Carb, Ball Nose End Mill - 44617
