12.00mm Dia, 2 Flute, Square End End Mill - 44564
SERIES: 47ME
S-Carb
12.00mm Dia, 15.98mm LOC, 80.01mm Reach, 12.00mm Shank Dia, 2 Flute, 35 Degree Helix, Uncoated, Series 47ME, S-Carb, Square End End Mill - 44564
Feature & Benefits
Symmetrical Flute Design
Circular Land
Open Fluting
| Series Description | S-Carb |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Unit (inch/mm) | mm |
| Number of Flutes | 2 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Secondary Workpiece Material | Plastics & Composites |

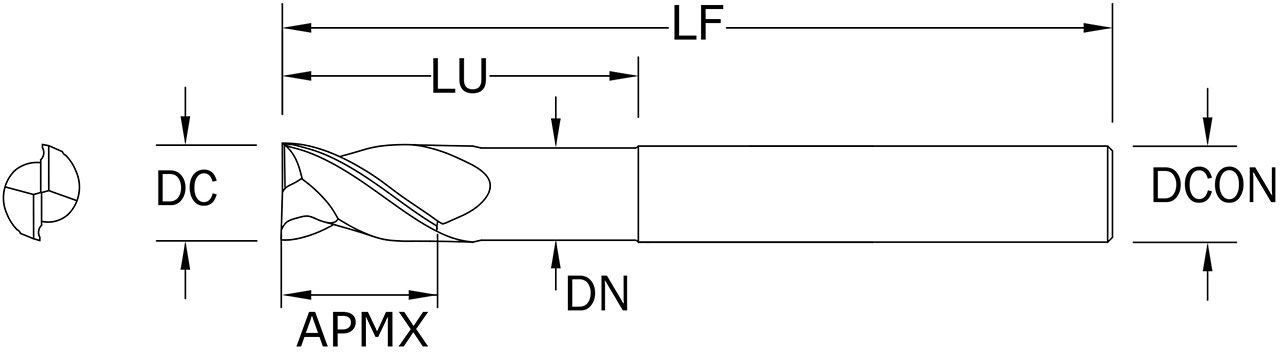

| Cutting Diameter (DC) (Decimal Inch) | 0.4724 |
| Cutting Diameter (DC) (mm) | 12.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.4724 |
| Shank Diameter (DCON) (mm) | 12.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.6299 |
| Length of Cut (APMX) (mm) | 16.00 |
| Reach (LU) (Decimal Inch) | 3.1500 |
| Reach (LU) (mm) | 80.01 |
| Overall Length (LF) (Decimal Inch) | 5.9055 |
| Overall Length (LF) (mm) | 150.00 |
| Neck Diameter (DN) (Decimal Inch) | 0.4574 |
| Neck Diameter (DN) (mm) | 11.62 |
| Shank Length (LS) (Decimal Inch) | 5.2756 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.00043 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.011 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | Bright/Uncoated |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 35 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.5100 |
| Series | 47ME |
| Weldon Flat | No |
| US Stock | 51 |
| Shank Length (LS) (mm) | 134.00 |
| Tool Length | Stub |
