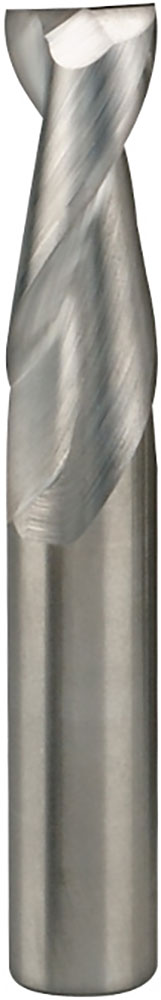

25.00mm Dia, 2 Flute, Square End End Mill - 44560

SERIES: 47M

S-Carb

25.00mm Dia, 38.00mm LOC, 25.00mm Shank Dia, 2 Flute, 35 Degree Helix, Uncoated, Series 47M, S-Carb, Square End End Mill - 44560

Feature & Benefits

Circular land reduces edge aggressiveness for varied speed and feed rates

2 Flutes effectively manage the large size and volume of chips produced during the aggressive machining process

Excellent balance at high speeds and aggressive plunging capability

Recommended for materials ≤ 150 Bhn (≤ 7 HRc)

List Price: $597.49

Total Available U.S. :3

Series Description	S-Carb
High Performance	Yes
End Configuration	Square End
Unit (inch/mm)	mm
Number of Flutes	2
Primary Workpiece Material	(N) Non-Ferrous Materials
Secondary Workpiece Material	Plastics & Composites
Cutting Diameter (DC) (Decimal Inch)	0.9843
Cutting Diameter (DC) (mm)	25.00
Shank Diameter (DCON) (Decimal Inch)	0.9843
Shank Diameter (DCON) (mm)	25.00
Length of Cut (APMX) (Decimal Inch)	1.4961
Length of Cut (APMX) (mm)	38.00
Overall Length (LF) (Decimal Inch)	4.0945
Overall Length (LF) (mm)	104.00
Shank Length (LS) (Decimal Inch)	2.5950
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.00051
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.013
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Coating Description	Bright/Uncoated
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Helix Angle	Right Spiral
Helix Angle (Degree)	35
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	1.3470
Series	47M
Weldon Flat	No
US Stock	3
Shank Length (LS) (mm)	65.91
Tool Length	Stub

Alternate Products

25.00mm Dia, 38.00mm LOC, 25.00mm Shank Dia, 2 Flute, 35 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 47M, S-Carb, Square End End Mill - 44597

List Price: $713.06

Total Available U.S. :3
