5.00mm Dia, 4 Flute, Corner Radius End Mill - 40005
SERIES: 01C
General Application End Mill

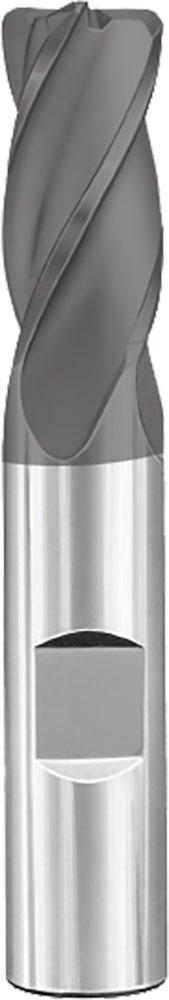

5.00mm Dia, 16.00mm LOC, 6.00mm Shank Dia, 0.50mm Radius, 4 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 01C, Corner Radius End Mill - 40005
| Series Description | General Application End Mill |
|---|---|
| End Configuration | Corner Radius |
| Unit (inch/mm) | mm |
| Number of Flutes | 4 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

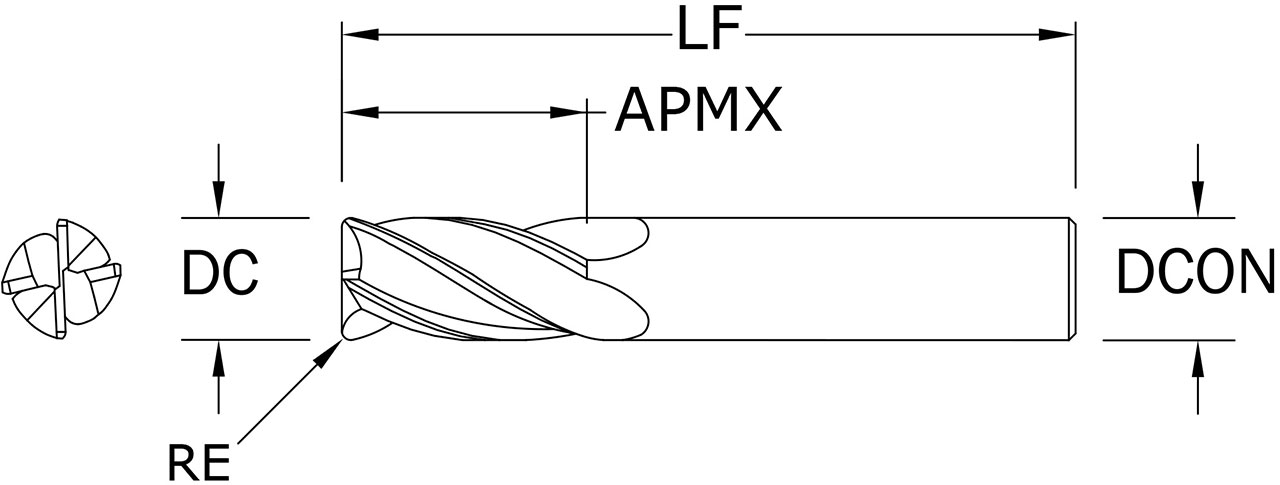

| Cutting Diameter (DC) (Decimal Inch) | 0.1969 |
| Cutting Diameter (DC) (mm) | 5.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.2362 |
| Shank Diameter (DCON) (mm) | 6.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.6299 |
| Length of Cut (APMX) (mm) | 16.00 |
| Overall Length (LF) (Decimal Inch) | 1.9685 |
| Overall Length (LF) (mm) | 50.00 |
| Corner Radius (RE) (Decimal Inch) | 0.0197 |
| Corner Radius (RE) (mm) | 0.50 |
| Shank Length (LS) (Decimal Inch) | 1.3400 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Corner Radius (RE) Tolerance (mm) | +0.000/-0.050 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.0400 |
| Series | 01C |
| Weldon Flat | No |
| US Stock | 572 |
| Shank Length (LS) (mm) | 34.04 |
| Tool Length | Long |
| Coating Description | AlTiN (Ti-NAMITE-A) |
| Flute Type | Spiral |
