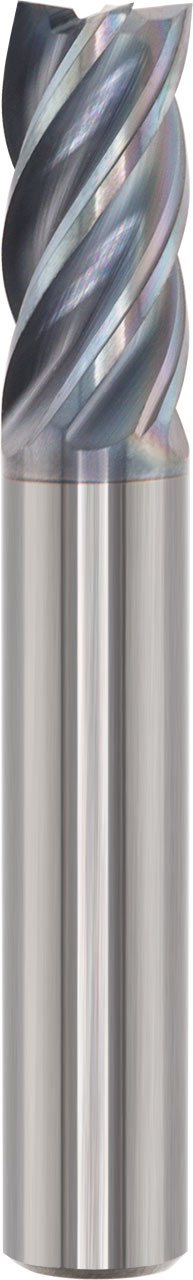

1/2" Dia, 5 Flute, Square End End Mill - 38721
SERIES: Z5S
Z-Carb-HPR
1/2" Dia, 5/8" LOC, 1/2" Shank Dia, 5 Flute, 37 Degree Helix, MN (MEGACOAT NANO) Coated, Series Z5S, Z-Carb-HPR, Square End End Mill - 38721
Feature & Benefits
An ideal balance of helix, indexing, flute depth, rake and relief
Variable indexing for chatter supression and patented edge geometry for shearing and strength
Chatter-free geometry allows deep cutting and high speed machining
Optimized tool life through Kyocera proprietary PVD MEGACOAT NANO (MN) coating
Excels at roughing, ramping, high speed machining and finishing in a variety of materials
| Series | Z5S |
|---|---|
| Series Description | Z-Carb-HPR |
| High Performance | Yes |
| End Configuration | Square End |
| Tool Length | Stub |
| Unit (inch/mm) | inch |
| Number of Flutes | 5 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.5000 |
| Cutting Diameter (DC) (Fractional Inch) | 1/2 |
| Cutting Diameter (DC) (mm) | 12.70 |
| Shank Diameter (DCON) (Decimal Inch) | 0.5000 |
| Shank Diameter (DCON) (Fractional Inch) | 1/2 |
| Shank Diameter (DCON) (mm) | 12.70 |
| Length of Cut (APMX) (Decimal Inch) | 0.6250 |
| Length of Cut (APMX) (Fractional Inch) | 5/8 |
| Length of Cut (APMX) (mm) | 15.88 |
| Overall Length (LF) (Decimal Inch) | 3.0000 |
| Overall Length (LF) (Fractional Inch) | 3 |
| Overall Length (LF) (mm) | 76.20 |
| Shank Length (LS) (Decimal Inch) | 2.3750 |
| Shank Length (LS) (Fractional Inch) | 2-3/8 |
| Shank Length (LS) (mm) | 60.33 |
| Non-Cutting Center Diameter (NCD) (Decimal Inch) | 0.1750 |
| Non-Cutting Center Diameter (NCD) (mm) | 4.45 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Weldon Flat | No |
| Coolant Option | External Coolant |
| Coating Description | MN (MEGACOAT NANO) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 37 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| Shipping Weight | 0.2890 |
| US Stock | 10 |
| Shank Diameter (DCON) Tolerance (Decimal Inch) | +0.00000/-0.00043 |
| Shank Diameter (DCON) Tolerance (mm) | +0.0000/-0.0109 |
| Flute Type | Spiral |
