7/16" Dia, 5 Flute, Square End End Mill - 37169
SERIES: Z5S
Z-Carb-HPR
7/16" Dia, 7/8" LOC, 7/16" Shank Dia, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5S, Z-Carb-HPR, Square End End Mill - 37169
Feature & Benefits
Positive Radial Rake
Variable Flute Pattern
Open Center Design
| Series Description | Z-Carb-HPR |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Tool Length | Regular |
| Unit (inch/mm) | inch |
| Number of Flutes | 5 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.4375 |
| Cutting Diameter (DC) (Fractional Inch) | 7/16 |
| Cutting Diameter (DC) (mm) | 11.11 |
| Shank Diameter (DCON) (Decimal Inch) | 0.4375 |
| Shank Diameter (DCON) (mm) | 11.11 |
| Length of Cut (APMX) (Decimal Inch) | 0.8750 |
| Length of Cut (APMX) (Fractional Inch) | 7/8 |
| Length of Cut (APMX) (mm) | 22.23 |
| Overall Length (LF) (Decimal Inch) | 2.7500 |
| Overall Length (LF) (Fractional Inch) | 2-3/4 |
| Overall Length (LF) (mm) | 69.85 |
| Shank Length (LS) (Decimal Inch) | 1.8750 |
| Shank Length (LS) (Fractional Inch) | 1-7/8 |
| Non-Cutting Center Diameter (NCD) (Decimal Inch) | 0.1530 |
| Non-Cutting Center Diameter (NCD) (mm) | 3.89 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 37 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| Shipping Weight | 0.1750 |
| Series | Z5S |
| Weldon Flat | No |
| US Stock | 31 |
| Shank Length (LS) (mm) | 47.63 |
| Shank Diameter (DCON) (Fractional Inch) | 7/16 |
| Coating Description | TM (Ti-NAMITE-M) |
| Flute Type | Spiral |
Alternate Products

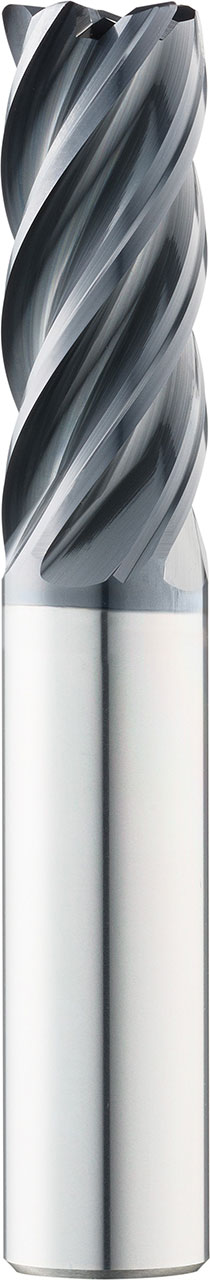

7/16" Dia, 7/8" LOC, 7/16" Shank Dia, 5 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5S, Z-Carb-HPR, Square End End Mill - 37170
