1/2" Dia, 4 Flute, Ball Nose End Mill - 36591
SERIES: ZPB
Z-Carb-AP
1/2" Dia, 1-1/4" LOC, 1/2" Shank Dia, 4 Flute, 35-38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series ZPB, Z-Carb-AP, Ball Nose End Mill - 36591
Feature & Benefits
Unequal helix design reduces damaging harmonics by changing the angle at which each cutting edge enters and exits the material
Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
Optimal material removal rates through increased feed and depths of cut
Ball end design ideal for finishing operations in complex workpieces
Recommended for materials ≤ 45 HRc (≤ 420 Bhn)
| Series Description | Z-Carb-AP |
|---|---|
| High Performance | Yes |
| End Configuration | Ball Nose |
| Unit (inch/mm) | inch |
| Number of Flutes | 4 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

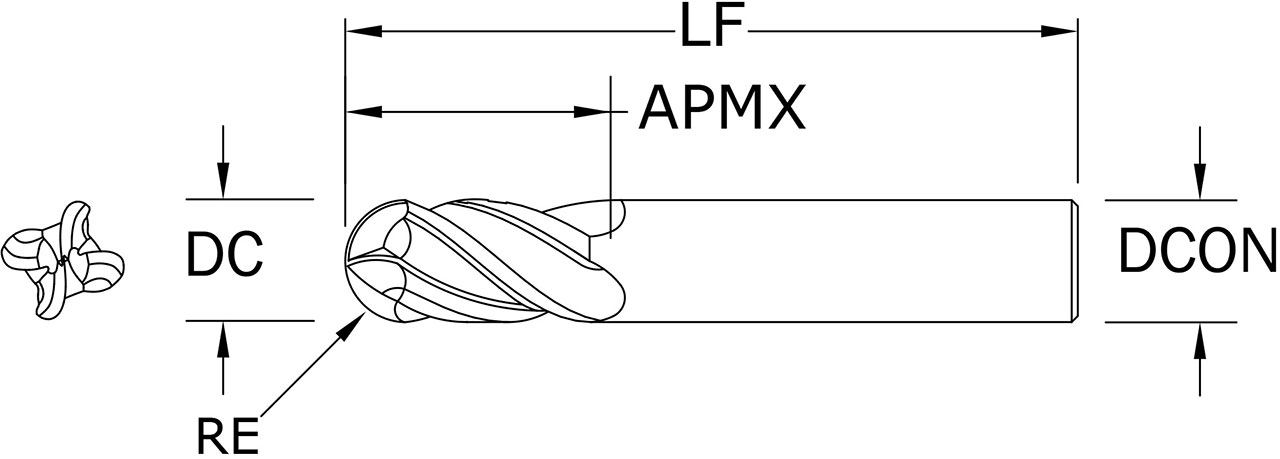

| Cutting Diameter (DC) (Decimal Inch) | 0.5000 |
| Cutting Diameter (DC) (Fractional Inch) | 1/2 |
| Cutting Diameter (DC) (mm) | 12.70 |
| Shank Diameter (DCON) (Decimal Inch) | 0.5000 |
| Shank Diameter (DCON) (mm) | 12.70 |
| Length of Cut (APMX) (Decimal Inch) | 1.2500 |
| Length of Cut (APMX) (Fractional Inch) | 1-1/4 |
| Length of Cut (APMX) (mm) | 31.75 |
| Overall Length (LF) (Decimal Inch) | 3.2500 |
| Overall Length (LF) (Fractional Inch) | 3-1/4 |
| Overall Length (LF) (mm) | 82.55 |
| Shank Length (LS) (Decimal Inch) | 2.0000 |
| Shank Length (LS) (Fractional Inch) | 2 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0010 |
| Corner Radius (RE) Tolerance (mm) | +0.000/-0.025 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | TX (Ti-NAMITE-X) |
| Additional Geometry | Flute Spacing Unequal / Right Hand Cut Direction (RHC) |
| Rake Angle | Variable |
| Helix Angle | Variable Right Spiral |
| Helix Angle (Degree) | 35-38 |
| Variable Helix | Yes |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.2800 |
| Series | ZPB |
| Weldon Flat | No |
| US Stock | 196 |
| Shank Length (LS) (mm) | 50.80 |
| Shank Diameter (DCON) (Fractional Inch) | 1/2 |
| Tool Length | Regular |
