3/8" Dia, 3 Flute, Chip Breaker Corner Radius End Mill - 36114
SERIES: 61
General Application End Mill - Coarse Pitch
3/8" Dia, 7/8" LOC, 3/8" Shank Dia, 0.0600" Radius, 3 Flute, 40 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 61, Coarse Pitch, Chip Breaker Corner Radius End Mill - 36114
Feature & Benefits
Weldon Flat
Chip Breakers
| Series Description | General Application End Mill - Coarse Pitch |
|---|---|
| High Performance | No |
| End Configuration | Chip Breaker (CR) |
| Unit (inch/mm) | inch |
| Number of Flutes | 3 |
| Primary Workpiece Material | (P) Steel|(K) Cast Iron |
| Secondary Workpiece Material | (H) Hardened Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.3750 |
| Cutting Diameter (DC) (Fractional Inch) | 3/8 |
| Cutting Diameter (DC) (mm) | 9.53 |
| Shank Diameter (DCON) (Decimal Inch) | 0.3750 |
| Shank Diameter (DCON) (mm) | 9.53 |
| Length of Cut (APMX) (Decimal Inch) | 0.8750 |
| Length of Cut (APMX) (Fractional Inch) | 7/8 |
| Length of Cut (APMX) (mm) | 22.23 |
| Overall Length (LF) (Decimal Inch) | 2.5000 |
| Overall Length (LF) (Fractional Inch) | 2-1/2 |
| Overall Length (LF) (mm) | 63.50 |
| Corner Radius (RE) (Decimal Inch) | 0.0600 |
| Corner Radius (RE) (mm) | 1.52 |
| Shank Length (LS) (Decimal Inch) | 1.6250 |
| Shank Length (LS) (Fractional Inch) | 1-5/8 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0040 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.100 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0050/-0.0050 |
| Corner Radius (RE) Tolerance (mm) | +0.127/-0.127 |
| Shank Type | Weldon (Drive Flat) |
| Coolant Option | External Coolant |
| Coating Description | AlTiN (Ti-NAMITE-A) |
| Additional Geometry | Chip Breaker / Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 40 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | Yes |
| Shipping Weight | 0.1220 |
| Series | 61 |
| Weldon Flat | Yes |
| US Stock | 6 |
| Shank Length (LS) (mm) | 41.28 |
| Shank Diameter (DCON) (Fractional Inch) | 3/8 |
| Tool Length | Regular |
Alternate Products
3/8" Dia, 7/8" LOC, 3/8" Shank Dia, 0.0600" Radius, 3 Flute, 40 Degree Helix, Ti-NAMITE-C (TiCN) Coated, Series 61, Coarse Pitch, Chip Breaker Corner Radius End Mill - 36112
List Price: $154.87
U.S. stocked items ship next day
Total Available U.S. :6

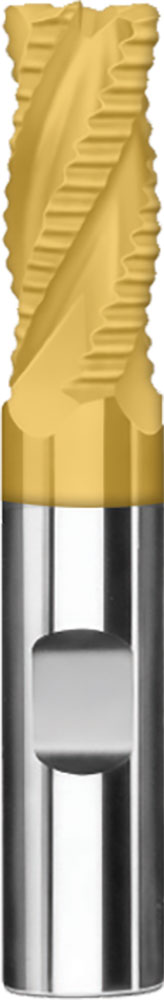

3/8" Dia, 7/8" LOC, 3/8" Shank Dia, 0.0600" Radius, 3 Flute, 40 Degree Helix, Ti-NAMITE (TiN) Coated, Series 61, Coarse Pitch, Chip Breaker Corner Radius End Mill - 36113
