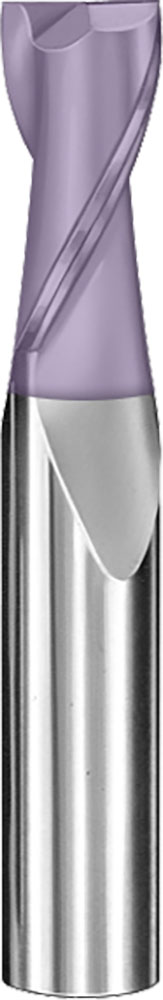

1/8" Dia, 2 Flute, Square End End Mill - 35302
SERIES: 52S
General Application End Mill - High Shear
1/8" Dia, 0.4370" LOC, 1/8" Shank Dia, 2 Flute, 30 Degree Helix, Ti-NAMITE-C (TiCN) Coated, Series 52S, High Shear, Square End End Mill - 35302
| Series Description | General Application End Mill - High Shear |
|---|---|
| End Configuration | Square End |
| Unit (inch/mm) | inch |
| Number of Flutes | 2 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.1250 |
| Cutting Diameter (DC) (Fractional Inch) | 1/8 |
| Cutting Diameter (DC) (mm) | 3.18 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1250 |
| Shank Diameter (DCON) (mm) | 3.18 |
| Length of Cut (APMX) (Decimal Inch) | 0.4370 |
| Length of Cut (APMX) (mm) | 11.10 |
| Overall Length (LF) (Decimal Inch) | 1.5000 |
| Overall Length (LF) (Fractional Inch) | 1-1/2 |
| Overall Length (LF) (mm) | 38.10 |
| Shank Length (LS) (Decimal Inch) | 1.0630 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.0120 |
| Series | 52S |
| Weldon Flat | No |
| US Stock | 6 |
| Shank Length (LS) (mm) | 27.00 |
| Shank Diameter (DCON) (Fractional Inch) | 1/8 |
| Tool Length | Long |
| Coating Description | TiCN (Ti-NAMITE-C) |
| Flute Type | Spiral |
Alternate Products

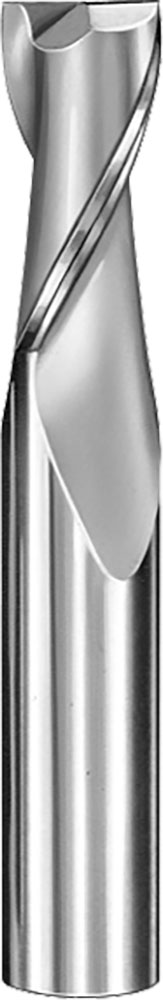

1/8" Dia, 0.4370" LOC, 1/8" Shank Dia, 2 Flute, 30 Degree Helix, Uncoated, Series 52S, High Shear, Square End End Mill - 35277
