1/2" Dia, 6 Flute, Corner Radius End Mill - 35115
SERIES: 51CR
T-Carb
1/2" Dia, 1-1/4" LOC, 1/2" Shank Dia, 0.0300" Radius, 6 Flute, 41 Degree Helix, Ti-NAMITE-X (TX) Coated, Series 51CR, T-Carb, Corner Radius End Mill - 35115
Feature & Benefits
Engineered for High Speed Milling using Trochoidal and Peel Milling techniques
Eccentric relief provides superior strength and smoother surface finish
Enhanced corner geometry with tight tolerance corner radii
Recommended for materials ≤ 45 HRc (≤ 420 Bhn)
| Series Description | T-Carb |
|---|---|
| High Performance | Yes |
| End Configuration | Corner Radius |
| Unit (inch/mm) | inch |
| Number of Flutes | 6 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

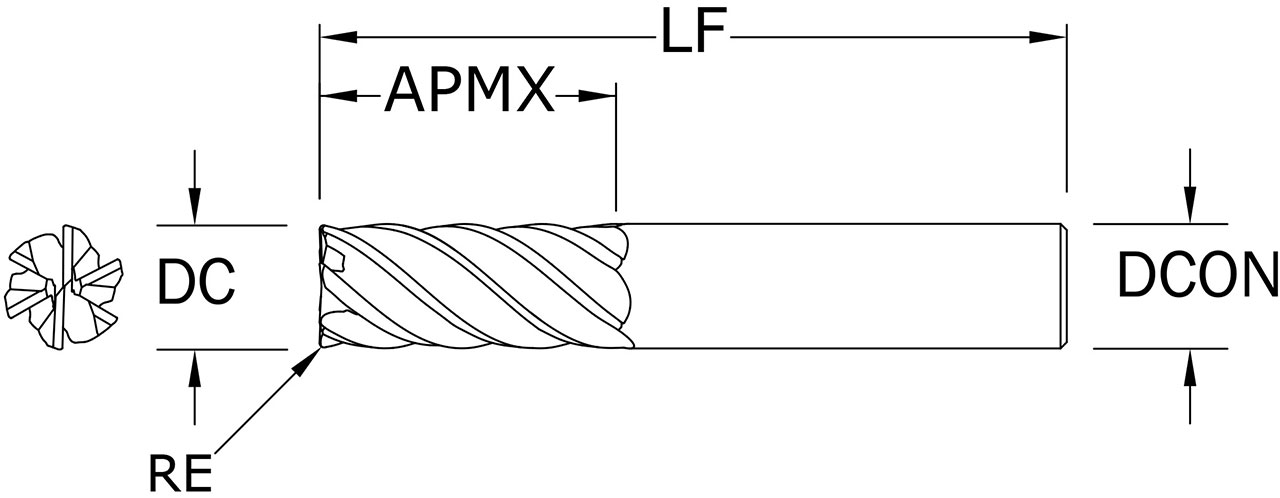

| Cutting Diameter (DC) (Decimal Inch) | 0.5000 |
| Cutting Diameter (DC) (Fractional Inch) | 1/2 |
| Cutting Diameter (DC) (mm) | 12.70 |
| Shank Diameter (DCON) (Decimal Inch) | 0.5000 |
| Shank Diameter (DCON) (mm) | 12.70 |
| Length of Cut (APMX) (Decimal Inch) | 1.2500 |
| Length of Cut (APMX) (Fractional Inch) | 1-1/4 |
| Length of Cut (APMX) (mm) | 31.75 |
| Overall Length (LF) (Decimal Inch) | 3.0000 |
| Overall Length (LF) (Fractional Inch) | 3 |
| Overall Length (LF) (mm) | 76.20 |
| Corner Radius (RE) (Decimal Inch) | 0.0300 |
| Corner Radius (RE) (mm) | 0.76 |
| Shank Length (LS) (Decimal Inch) | 1.7500 |
| Shank Length (LS) (Fractional Inch) | 1-3/4 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Corner Radius (RE) Tolerance (mm) | +0.000/-0.050 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 41 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.2670 |
| Series | 51CR |
| Weldon Flat | No |
| US Stock | 473 |
| Shank Length (LS) (mm) | 44.45 |
| Shank Diameter (DCON) (Fractional Inch) | 1/2 |
| Tool Length | Regular |
| Coating Description | TX (Ti-NAMITE-X) |
| Flute Type | Spiral |
