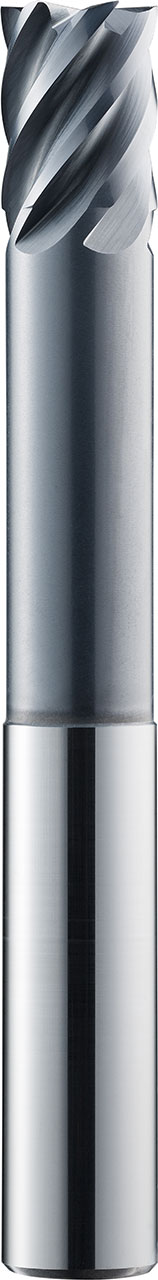

3/8" Dia, 6 Flute, Square End End Mill - 35107

SERIES: 51S

T-Carb

3/8" Dia, 1/2" LOC, 2-1/8" Reach, 3/8" Shank Dia, 6 Flute, 41 Degree Helix, Ti-NAMITE-X (TX) Coated, Series 51S, T-Carb, Square End End Mill - 35107

Feature & Benefits

Eccentric Relief

Variable Flute Geometry

Total Available U.S. :114

Series Description	T-Carb
High Performance	Yes
End Configuration	Square End
Unit (inch/mm)	inch
Number of Flutes	6
Primary Workpiece Material	(P) Steel\|(M) Stainless Steel\|(K) Cast Iron\|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials

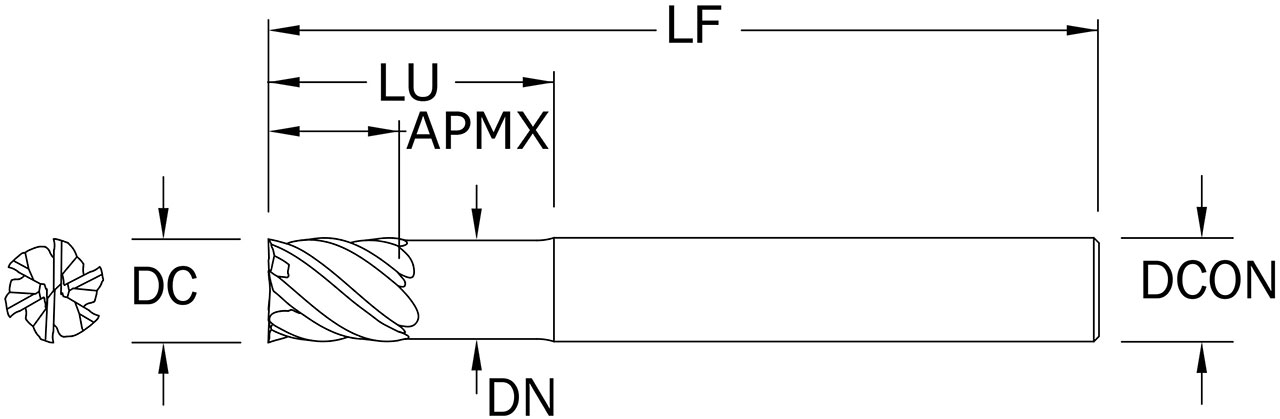

Cutting Diameter (DC) (Decimal Inch)	0.3750
Cutting Diameter (DC) (Fractional Inch)	3/8
Cutting Diameter (DC) (mm)	9.53
Shank Diameter (DCON) (Decimal Inch)	0.3750
Shank Diameter (DCON) (mm)	9.53
Length of Cut (APMX) (Decimal Inch)	0.5000
Length of Cut (APMX) (Fractional Inch)	1/2
Length of Cut (APMX) (mm)	12.70
Reach (LU) (Decimal Inch)	2.1250
Reach (LU) (Fractional Inch)	2-1/8
Reach (LU) (mm)	53.98
Overall Length (LF) (Decimal Inch)	4.0000
Overall Length (LF) (Fractional Inch)	4
Overall Length (LF) (mm)	101.60
Neck Diameter (DN) (Decimal Inch)	0.3560
Neck Diameter (DN) (mm)	9.04
Shank Length (LS) (Decimal Inch)	1.3750
Shank Length (LS) (Fractional Inch)	1-3/8
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0020
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.050
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Helix Angle	Right Spiral
Helix Angle (Degree)	41
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.2310
Series	51S
Weldon Flat	No
US Stock	114
Shank Length (LS) (mm)	34.93
Shank Diameter (DCON) (Fractional Inch)	3/8
Tool Length	Long Reach Neck
Coating Description	TX (Ti-NAMITE-X)
Flute Type	Spiral
Shank Diameter (DCON) Tolerance (ISO)	h6
