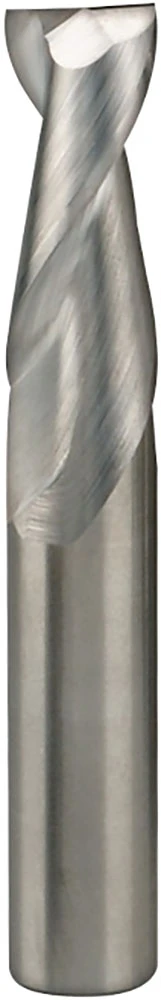

5/16" Dia, 2 Flute, Square End End Mill - 34623

EDP: 34623

SERIES: 47

S-Carb

5/16" Dia, 13/16" LOC, 5/16" Shank Dia, 2 Flute, 35 Degree Helix, Uncoated, Series 47, S-Carb, Square End End Mill - 34623

Feature & Benefits

Circular land reduces edge aggressiveness for varied speed and feed rates

2 Flutes effectively manage the large size and volume of chips produced during the aggressive machining process

Excellent balance at high speeds and aggressive plunging capability

Recommended for materials ≤ 150 Bhn (≤ 7 HRc)

Total Available U.S. :38

Series Description	S-Carb
High Performance	Yes
End Configuration	Square End
Unit (inch/mm)	inch
Number of Flutes	2
Primary Workpiece Material	(N) Non-Ferrous Materials
Secondary Workpiece Material	Plastics & Composites
Cutting Diameter (DC) (Decimal Inch)	0.3125
Cutting Diameter (DC) (Fractional Inch)	5/16
Cutting Diameter (DC) (mm)	7.94
Shank Diameter (DCON) (Decimal Inch)	0.3125
Shank Diameter (DCON) (mm)	7.94
Length of Cut (APMX) (Decimal Inch)	0.8125
Length of Cut (APMX) (Fractional Inch)	13/16
Length of Cut (APMX) (mm)	20.64
Overall Length (LF) (Decimal Inch)	2.5000
Overall Length (LF) (Fractional Inch)	2-1/2
Overall Length (LF) (mm)	63.50
Shank Length (LS) (Decimal Inch)	1.6880
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.00035
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.009
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Helix Angle	Right Spiral
Helix Angle (Degree)	35
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.0890
Series	47
Weldon Flat	No
US Stock	38
Shank Length (LS) (mm)	42.88
Shank Diameter (DCON) (Fractional Inch)	5/16
Tool Length	Regular
Coating Description	Bright/Uncoated
Flute Type	Spiral
