1" Dia, 5 Flute, Square End End Mill - 32670
SERIES: 55S
V-Carb
1" Dia, 1-1/2" LOC, 1" Shank Dia, 5 Flute, 45 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 55S, V-Carb, Square End End Mill - 32670
Feature & Benefits
Unequal indexing, high helix and an ideal rake and relief combination for unmatched finishing capability
The choice when peak finish quality is the requirement
Enhanced corner geometry with tight tolerance corner radii
Recommended for materials ≤ 45 HRc (≤ 420 Bhn)
| Series Description | V-Carb |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Unit (inch/mm) | inch |
| Number of Flutes | 5 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Cutting Diameter (DC) (Decimal Inch) | 1.0000 |
| Cutting Diameter (DC) (Fractional Inch) | 1 |
| Cutting Diameter (DC) (mm) | 25.40 |
| Shank Diameter (DCON) (Decimal Inch) | 1.0000 |
| Shank Diameter (DCON) (mm) | 25.40 |
| Length of Cut (APMX) (Decimal Inch) | 1.5000 |
| Length of Cut (APMX) (Fractional Inch) | 1-1/2 |
| Length of Cut (APMX) (mm) | 38.10 |
| Overall Length (LF) (Decimal Inch) | 4.0000 |
| Overall Length (LF) (Fractional Inch) | 4 |
| Overall Length (LF) (mm) | 101.60 |
| Shank Length (LS) (Decimal Inch) | 2.5000 |
| Shank Length (LS) (Fractional Inch) | 2-1/2 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | AlTiN (Ti-NAMITE-A) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 45 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 1.3740 |
| Series | 55S |
| Weldon Flat | No |
| US Stock | 7 |
| Shank Length (LS) (mm) | 63.50 |
| Shank Diameter (DCON) (Fractional Inch) | 1 |
| Tool Length | Stub |
Alternate Products
1" Dia, 1-1/2" LOC, 1" Shank Dia, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5S, Z-Carb-HPR, Square End End Mill - 37130
List Price: $570.76
U.S. stocked items ship next day
Total Available U.S. :0
1" Dia, 1-1/2" LOC, 1" Shank Dia, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5S, Z-Carb-HPR, Square End End Mill - 37137
List Price: $625.24
U.S. stocked items ship next day
Total Available U.S. :5
1" Dia, 1-1/2" LOC, 1" Shank Dia, 5 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5S, Z-Carb-HPR, Square End End Mill - 38523
List Price: $681.07
U.S. stocked items ship next day
Total Available U.S. :0
1" Dia, 1-1/2" LOC, 1" Shank Dia, 5 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5S, Z-Carb-HPR, Square End End Mill - 37295
List Price: $681.07
U.S. stocked items ship next day
Total Available U.S. :5

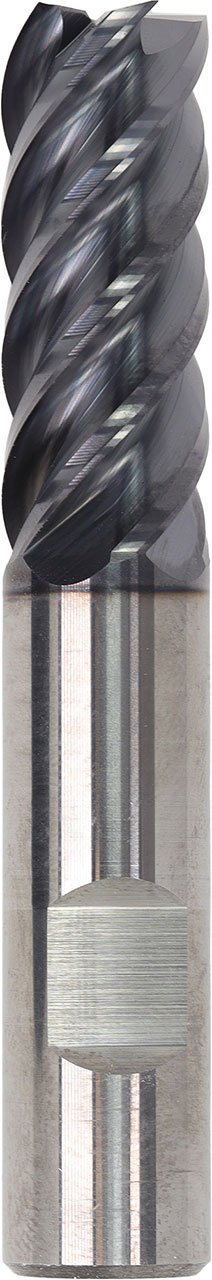

1" Dia, 1-1/2" LOC, 1" Shank Dia, 5 Flute, 45 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 55S, V-Carb, Square End End Mill - 32671
