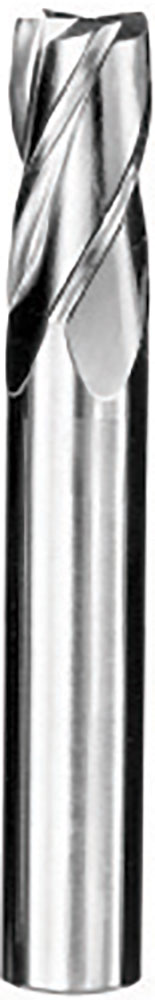

11/64" Dia, 4 Flute, Square End End Mill - 30121
SERIES: 01S
General Application End Mill
11/64" Dia, 5/8" LOC, 3/16" Shank Dia, 4 Flute, 30 Degree Helix, Uncoated, Series 01S, Square End End Mill - 30121
| Series Description | General Application End Mill |
|---|---|
| High Performance | No |
| End Configuration | Square End |
| Unit (inch/mm) | inch |
| Number of Flutes | 4 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.1719 |
| Cutting Diameter (DC) (Fractional Inch) | 11/64 |
| Cutting Diameter (DC) (mm) | 4.37 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1875 |
| Shank Diameter (DCON) (mm) | 4.76 |
| Length of Cut (APMX) (Decimal Inch) | 0.6250 |
| Length of Cut (APMX) (Fractional Inch) | 5/8 |
| Length of Cut (APMX) (mm) | 15.88 |
| Overall Length (LF) (Decimal Inch) | 2.0000 |
| Overall Length (LF) (Fractional Inch) | 2 |
| Overall Length (LF) (mm) | 50.80 |
| Shank Length (LS) (Decimal Inch) | 1.3750 |
| Shank Length (LS) (Fractional Inch) | 1-3/8 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | Bright/Uncoated |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.0280 |
| Series | 01S |
| Weldon Flat | No |
| US Stock | 51 |
| Shank Length (LS) (mm) | 34.93 |
| Shank Diameter (DCON) (Fractional Inch) | 3/16 |
| Tool Length | Long |
Alternate Products

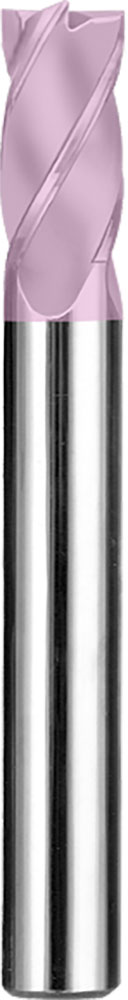

11/64" Dia, 5/8" LOC, 3/16" Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-C (TiCN) Coated, Series 01S, Square End End Mill - 39021
List Price: $34.77
U.S. stocked items ship next day
Total Available U.S. :16

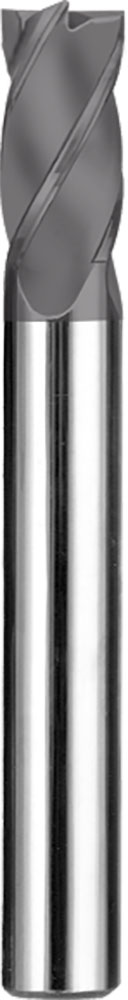

11/64" Dia, 5/8" LOC, 3/16" Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 01S, Square End End Mill - 30001
