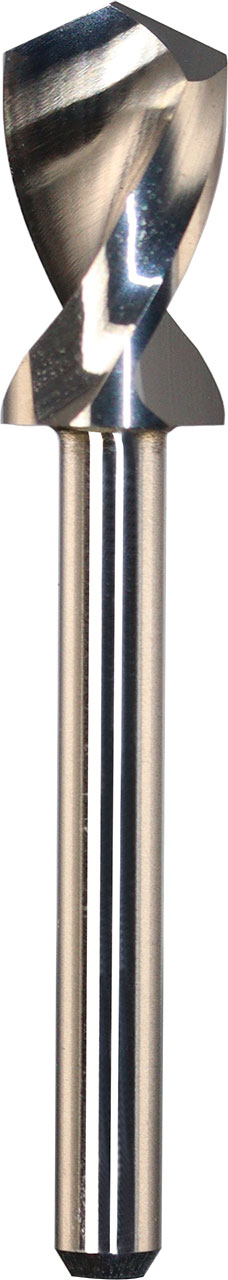

3.20mm Dia, 130 Degree Point, Solid Carbide Drill - 06069
SERIES: M155
Micro Drill - Inverse Diameter
3.20mm Dia, 130 Degree Point, 3.18mm Shank Dia, 38.10mm OAL, 2 Flute, Uncoated, Series M155, Micro - Inverse Diameter, Solid Carbide Drill - 06069
Feature & Benefits
4-Faceted point geometry provides centering assistance upon entry
Mirror Surface Finish is Applied to Allow for Smooth Chip Flow
Optimal End Geometry Ideal for Targeted Non-ferrous Materials
Manufactured in accordance with KSPT ISO certified quality procedures
| Series Description | Micro Drill - Inverse Diameter |
|---|---|
| Unit (inch/mm) | mm |
| Number of Flutes | 2 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Secondary Workpiece Material | (S) High Temp Alloy |
| Size | 3.20mm |

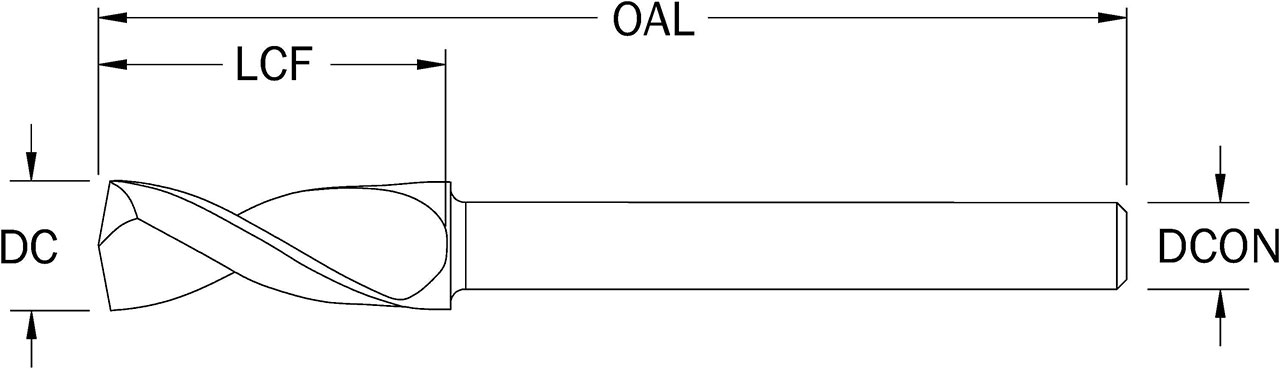

| Cutting Diameter (DC) (Decimal Inch) | 0.1260 |
| Cutting Diameter (DC) (mm) | 3.20 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1250 |
| Shank Diameter (DCON) (mm) | 3.18 |
| Flute Length (LCF) (Decimal Inch) | 0.5000 |
| Flute Length (LCF) (mm) | 12.70 |
| Overall Length (OAL) (Decimal Inch) | 1.5000 |
| Overall Length (OAL) (Fractional Inch) | 1-1/2 |
| Overall Length (OAL) (mm) | 38.10 |
| Shank Length (LS) (Decimal Inch) | 1.0000 |
| Point Angle (Degree) | 130 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Center Cutting | No |
| Number of Margins | 1 |
| KPT Micro Crossover (Old Material Number) | 8502127 |
| KPT Micro Crossover (Part Number) | 155-1260.500 |
| KPT Micro Crossover Type | Direct Match |
| Shipping Weight | 0.0130 |
| Series | M155 |
| US Stock | 170 |
| Shank Length (LS) (mm) | 25.40 |
| Shank Diameter (DCON) (Fractional Inch) | 1/8 |
| Usable Length (LU) (Decimal Inch) | 0.5000 |
| Usable Length (LU) (mm) | 12.70 |
| Coating Description | Bright/Uncoated |
| Double Margins (Yes/No) | No |
| Flute Type | Spiral |
