HIGH PRODUCTION
ALUMINUM MACHINING

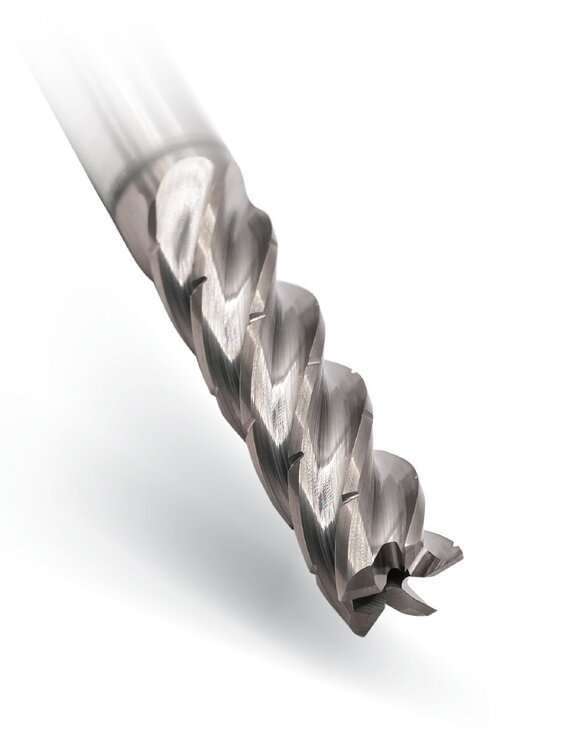

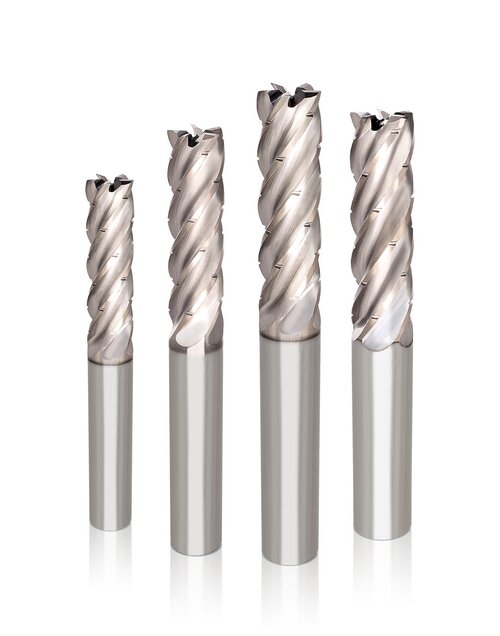

S-Carb H5
Engineered for versatile machining of aluminum and other non-ferrous materials, the S-Carb H5 combines advanced flute geometry, integrated chip breakers, central coolant hole, and Ti-NAMITE-B coating to excel in high-efficiency milling and finishing. The result is higher material removal rates, excellent surface finishes, and reliable performance across a wide range of machining conditions.
Features
Open Flute Geometry
Promotes excellent chip evacuation for aggressive slotting and high-efficiency milling.
Integrated Chip Breakers
Shorten chips for improved chip control and increased axial depths of cut.
Central Coolant Hole
Directs coolant to the cutting zone for enhanced chip evacuation and heat control.
Optimized End Geometry
Unique end work allows for improved ramping, chip control, stability, and floor finish.
Ti-NAMITE-B Coating
Advanced PVD coating reduces friction, improves wear resistance, and minimizes built-up edge when machining stainless steels and high-temperature alloys.
Floor Finish Comparison (Internal Evaluation)
The S-Carb H5 produced the best floor finish in both 6061 and 7075 aluminum when tested against competitors A-E. Its optimized end geometry delivers smoother surfaces, reduced vibration, and consistent results that help minimize secondary finishing operations.
Series Details
Lineup Details
- Cutting Diameter: 3/8" - 3/4" | 10mm - 20mm
- Length of Cut: 1-1/4" - 2-3/8" | 32mm - 64mm
- Overall Length: 3" - 5" | 75mm - 120mm
- Shank Diameter: 3/8" - 3/4" | 10mm - 20mm
- Corner Radius Sizes: 0.010" - 0.120" | 1mm - 3mm
- Coating: Ti-NAMITE-B
- Special Options: Square End, Corner Radius
- All sizes equipped with integrated chip breakers and central coolant hole.
Primary Material Applications
- Aluminum Alloys ≤ 88 HRb
- Copper Alloys ≤ 23 HRc
Industry Applications
Aerospace
Medical
Power Generation
Automotive
Casting & Foundries
General Engineering
