Letter W, 118 Degree Point, Solid Carbide Drill - 57202


SERIES: 101
General Application Drill
Letter W, 118 Degree Point, 0.3860" Shank Dia, 4-1/2" OAL, 2 Flute, 5xD, Ti-NAMITE-A (AlTiN) Coated, Series 101, Solid Carbide Drill - 57202
List Price: $181.98
U.S. stocked items ship next day
Total Available U.S. :0
Series DescriptionGeneral Application Drill
High PerformanceNo
Unit (inch/mm)inch
Number of Flutes2
Primary Workpiece Material(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material(H) Hardened Materials
Reach (xD)5xD
SizeW
Cutting Diameter (DC) (Decimal Inch)0.3860
Cutting Diameter (DC) (mm)9.80
Shank Diameter (DCON) (Decimal Inch)0.3860
Shank Diameter (DCON) (mm)9.80
Usable Length (LU) (Fractional Inch)2-19/64
Flute Length (LCF) (Decimal Inch)2.8750
Flute Length (LCF) (Fractional Inch)2-7/8
Flute Length (LCF) (mm)73.03
Overall Length (OAL) (Decimal Inch)4.5000
Overall Length (OAL) (Fractional Inch)4-1/2
Overall Length (OAL) (mm)114.30
Shank Length (LS) (Decimal Inch)1.6250
Shank Length (LS) (Fractional Inch)1-5/8
Point Angle (Degree)118
Cutting Diameter (DC) Tolerance (Decimal Inch)+.00000 / -.00050
Cutting Diameter (DC) Tolerance (mm)+.0000 / -.0127
Shank Diameter (DCON) Tolerance (ISO)h6
Shank TypeStraight
Coolant OptionExternal Coolant
Coating DescriptionAlTiN (Ti-NAMITE-A)
Additional GeometryRight Hand Cut Direction (RHC)
Helix AngleRight Spiral
Helix Angle (Degree)20
Variable HelixNo
Center CuttingNo
Chip BreakerNo
Number of Margins2
Shipping Weight0.1920
Series101
Weldon FlatNo
US Stock0
Shank Length (LS) (mm)41.28
Usable Length (LU) (Decimal Inch)2.2969
Usable Length (LU) (mm)58.34

Alternate Products

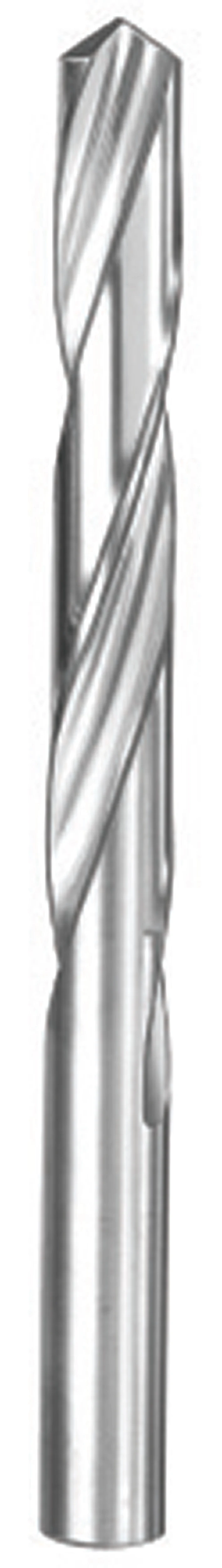

Letter W, 118 Degree Point, Solid Carbide Drill - 51223
