7/32" Dia, 2 Flute, Square End End Mill - 31363
SERIES: 17S
General Application End Mill

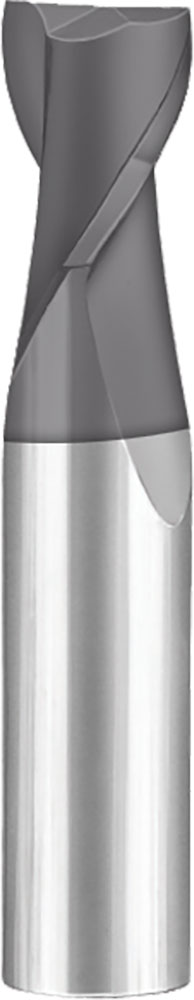

7/32" Dia, 0.4370" LOC, 1/4" Shank Dia, 2 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 17S, Square End End Mill - 31363
| Series Description | General Application End Mill |
|---|---|
| High Performance | No |
| End Configuration | Square End |
| Unit (inch/mm) | inch |
| Number of Flutes | 2 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

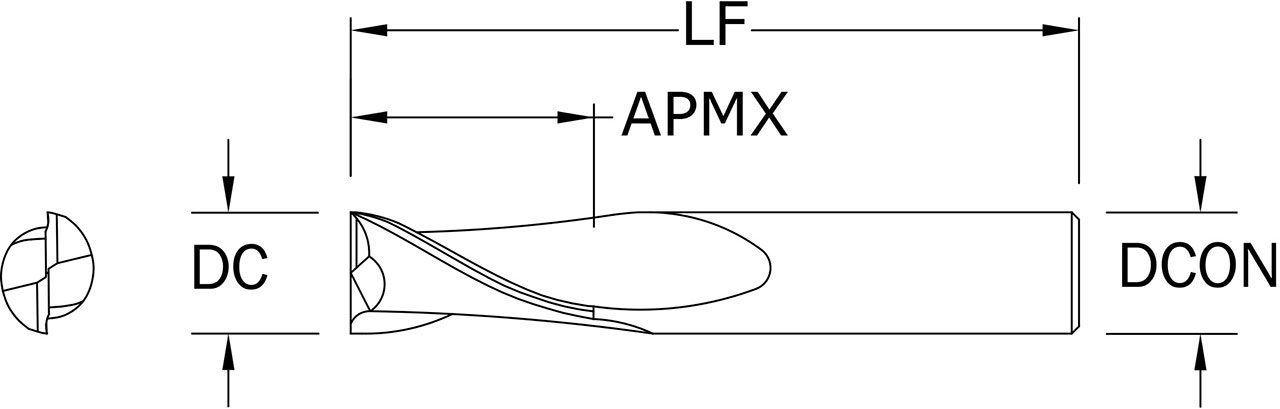

| Cutting Diameter (DC) (Decimal Inch) | 0.2188 |
| Cutting Diameter (DC) (Fractional Inch) | 7/32 |
| Cutting Diameter (DC) (mm) | 5.56 |
| Shank Diameter (DCON) (Decimal Inch) | 0.2500 |
| Shank Diameter (DCON) (mm) | 6.35 |
| Length of Cut (APMX) (Decimal Inch) | 0.4370 |
| Length of Cut (APMX) (mm) | 11.10 |
| Overall Length (LF) (Decimal Inch) | 2.0000 |
| Overall Length (LF) (Fractional Inch) | 2 |
| Overall Length (LF) (mm) | 50.80 |
| Shank Length (LS) (Decimal Inch) | 1.5630 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.0380 |
| Series | 17S |
| Weldon Flat | No |
| US Stock | 11 |
| Shank Length (LS) (mm) | 39.70 |
| Shank Diameter (DCON) (Fractional Inch) | 1/4 |
| Tool Length | Stub |
| Coating Description | AlTiN (Ti-NAMITE-A) |
Alternate Products
7/32" Dia, 0.4370" LOC, 1/4" Shank Dia, 2 Flute, 30 Degree Helix, Ti-NAMITE (TiN) Coated, Series 17S, Square End End Mill - 31755
U.S. stocked items ship next day
Total Available U.S. :0

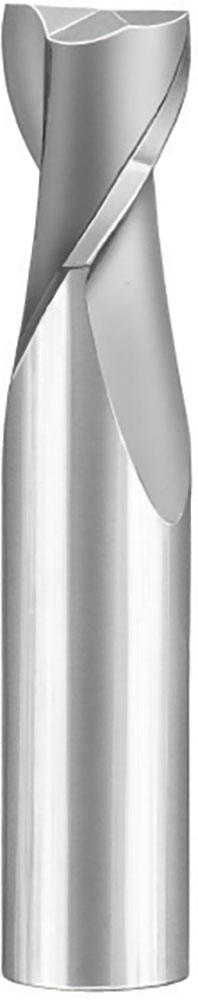

7/32" Dia, 0.4370" LOC, 1/4" Shank Dia, 2 Flute, 30 Degree Helix, Uncoated, Series 17S, Square End End Mill - 31711
