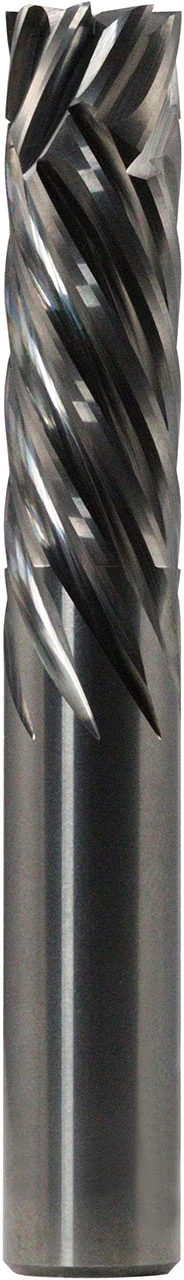

5/16" Dia, 4 Flute, Router - 72972


SERIES: 25
Series 25 - CFRP Compression Router
5/16" Dia, 1" LOC, 2-1/2" OAL, 5/16" Shank Dia, 4 Flute, 30 Degree Helix, Uncoated, Series 25, Series 25 - CFRP Compression Router - 72972
Feature & Benefits
Left Hand Helix
Right Hand Helix
U.S. stocked items ship next day
Total Available U.S. :10
Series DescriptionSeries 25 - CFRP Compression Router
High PerformanceYes
End ConfigurationSquare End
Tool LengthLong
Unit (inch/mm)inch
Number of Flutes4
Primary Workpiece Material(N) Non-Ferrous Materials
Cutting Diameter (DC) (Decimal Inch)0.3125
Cutting Diameter (DC) (Fractional Inch)5/16
Cutting Diameter (DC) (mm)7.94
Shank Diameter (DCON) (Decimal Inch)0.3125
Shank Diameter (DCON) (mm)7.94
Length of Cut (APMX) (Decimal Inch)1.0000
Length of Cut (APMX) (Fractional Inch)1
Length of Cut (APMX) (mm)25.40
Overall Length (LF) (Decimal Inch)2.5000
Overall Length (LF) (Fractional Inch)2-1/2
Overall Length (LF) (mm)63.50
Shank Length (LS) (Decimal Inch)1.5000
Shank Length (LS) (Fractional Inch)1-1/2
Split Length (SPTL) (Fractional Inch)7/32
Cutting Diameter (DC) Tolerance (Decimal Inch)+0.0000/-0.0030
Cutting Diameter (DC) Tolerance (mm)+0.000/-0.080
Shank Diameter (DCON) Tolerance (ISO)h6
Shank TypeStraight
Coolant OptionExternal Coolant
Additional GeometryRight Hand Cut Direction (RHC)
Rake AnglePositive
Helix AngleRight Spiral
Helix Angle (Degree)30
Variable HelixNo
Center CuttingYes
Chip BreakerNo
Shipping Weight0.0950
Series25
Weldon FlatNo
US Stock10
Shank Length (LS) (mm)38.10
Shank Diameter (DCON) (Fractional Inch)5/16
Coating DescriptionBright/Uncoated
