5/16" Dia, 2 Flute, Square End End Mill - 33305


SERIES: L3S
General Application End Mill
5/16" Dia, 1-1/8" LOC, 5/16" Shank Dia, 2 Flute, 30 Degree Helix, Uncoated, Series L3S, Square End End Mill - 33305
List Price: $66.10
U.S. stocked items ship next day
Total Available U.S. :6
Series DescriptionGeneral Application End Mill
High PerformanceNo
End ConfigurationSquare End
Unit (inch/mm)inch
Number of Flutes2
Primary Workpiece Material(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material(H) Hardened Materials
Cutting Diameter (DC) (Decimal Inch)0.3125
Cutting Diameter (DC) (Fractional Inch)5/16
Cutting Diameter (DC) (mm)7.94
Shank Diameter (DCON) (Decimal Inch)0.3125
Shank Diameter (DCON) (mm)7.94
Length of Cut (APMX) (Decimal Inch)1.1250
Length of Cut (APMX) (Fractional Inch)1-1/8
Length of Cut (APMX) (mm)28.58
Overall Length (LF) (Decimal Inch)3.0000
Overall Length (LF) (Fractional Inch)3
Overall Length (LF) (mm)76.20
Shank Length (LS) (Decimal Inch)1.8750
Shank Length (LS) (Fractional Inch)1-7/8
Cutting Diameter (DC) Tolerance (Decimal Inch)+0.0000/-0.0020
Cutting Diameter (DC) Tolerance (mm)+0.000/-0.050
Shank Diameter (DCON) Tolerance (ISO)h6
Shank TypeStraight
Coolant OptionExternal Coolant
Coating DescriptionBright/Uncoated
Additional GeometryRight Hand Cut Direction (RHC)
Rake AnglePositive
Helix AngleRight Spiral
Helix Angle (Degree)30
Variable HelixNo
Center CuttingYes
Chip BreakerNo
Shipping Weight0.1110
SeriesL3S
Weldon FlatNo
US Stock6
Shank Length (LS) (mm)47.63
Shank Diameter (DCON) (Fractional Inch)5/16
Tool LengthLong

Alternate Products

5/16" Dia, 2 Flute, Square End End Mill - 31853
5/16" Dia, 1-1/8" LOC, 5/16" Shank Dia, 2 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series L3S, Square End End Mill - 31853
List Price: $73.37
U.S. stocked items ship next day
Total Available U.S. :19

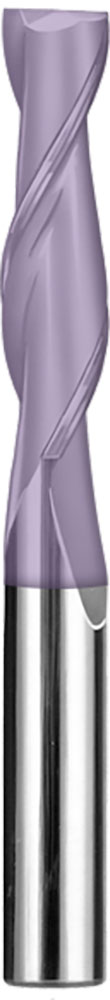

5/16" Dia, 2 Flute, Square End End Mill - 31826
5/16" Dia, 1-1/8" LOC, 5/16" Shank Dia, 2 Flute, 30 Degree Helix, Ti-NAMITE-C (TiCN) Coated, Series L3S, Square End End Mill - 31826
List Price: $73.37
U.S. stocked items ship next day
Total Available U.S. :22

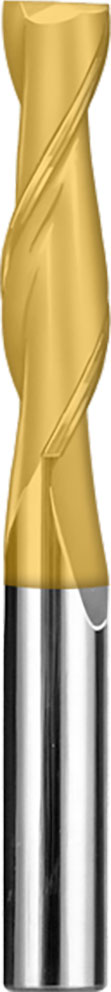

5/16" Dia, 2 Flute, Square End End Mill - 31821
5/16" Dia, 1-1/8" LOC, 5/16" Shank Dia, 2 Flute, 30 Degree Helix, Ti-NAMITE (TiN) Coated, Series L3S, Square End End Mill - 31821
List Price: $73.37
U.S. stocked items ship next day
Total Available U.S. :16
