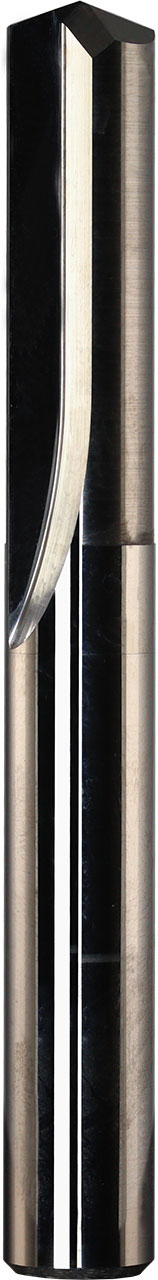

#49, 140 Degree Point, Solid Carbide Drill - 56258

SERIES: 106

General Application Drill - Straight Flute

#49, 140 Degree Point, 0.0730" Shank Dia, 1-11/16" OAL, 2 Flute, 3xD, Ti-NAMITE-A (AlTiN) Coated, Series 106, Straight Flute, Solid Carbide Drill - 56258

Total Available U.S. :1

Find Distributor

Series Description	General Application Drill - Straight Flute
Unit (inch/mm)	inch
Number of Flutes	2
Primary Workpiece Material	(P) Steel\|(K) Cast Iron
Secondary Workpiece Material	(H) Hardened Materials
Reach (xD)	3xD
Size	#49
Cutting Diameter (DC) (Decimal Inch)	0.0730
Cutting Diameter (DC) (mm)	1.85
Cutting Diameter (DC) (Wire)	#49
Shank Diameter (DCON) (Decimal Inch)	0.0730
Shank Diameter (DCON) (mm)	1.85
Usable Length (LU) (Fractional Inch)	35/64
Flute Length (LCF) (Decimal Inch)	0.6875
Flute Length (LCF) (Fractional Inch)	11/16
Flute Length (LCF) (mm)	17.46
Overall Length (OAL) (Decimal Inch)	1.6875
Overall Length (OAL) (Fractional Inch)	1-11/16
Overall Length (OAL) (mm)	42.86
Shank Length (LS) (Decimal Inch)	1.0470
Point Angle (Degree)	140
Cutting Diameter (DC) Tolerance (Decimal Inch)	+.00000 / -.00050
Cutting Diameter (DC) Tolerance (mm)	+.0000 / -.0099
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Helix Angle	Right Spiral
Helix Angle (Degree)	0
Center Cutting	No
Number of Margins	2
Shipping Weight	0.0060
Series	106
US Stock	1
Shank Length (LS) (mm)	26.59
Usable Length (LU) (Decimal Inch)	0.5469
Usable Length (LU) (mm)	13.89
Coating Description	AlTiN (Ti-NAMITE-A)
Double Margins (Yes/No)	No
Flute Type	Straight
