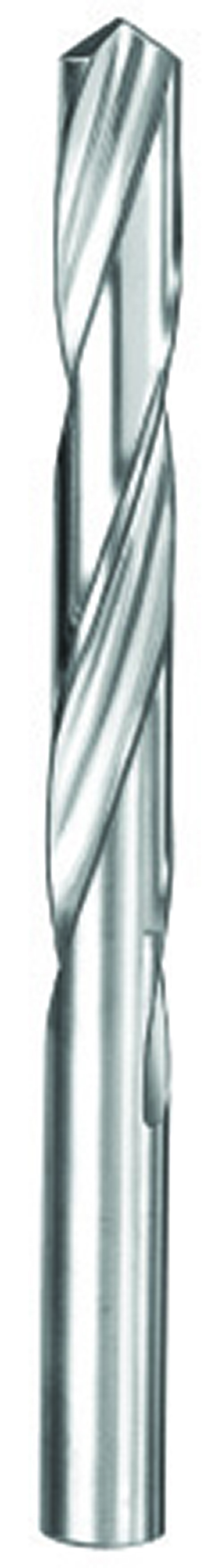

#44, 118 Degree Point, Solid Carbide Drill - 51044
SERIES: 101
General Application Drill
#44, 118 Degree Point, 0.0860" Shank Dia, 2" OAL, 2 Flute, 5xD, Uncoated, Series 101, Solid Carbide Drill - 51044
| Series Description | General Application Drill |
|---|---|
| Unit (inch/mm) | inch |
| Number of Flutes | 2 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Reach (xD) | 5xD |
| Size | #44 |
| Cutting Diameter (DC) (Decimal Inch) | 0.0860 |
| Cutting Diameter (DC) (mm) | 2.18 |
| Cutting Diameter (DC) (Wire) | #44 |
| Shank Diameter (DCON) (Decimal Inch) | 0.0860 |
| Shank Diameter (DCON) (mm) | 2.18 |
| Usable Length (LU) (Fractional Inch) | 51/64 |
| Flute Length (LCF) (Decimal Inch) | 1.0000 |
| Flute Length (LCF) (Fractional Inch) | 1 |
| Flute Length (LCF) (mm) | 25.40 |
| Overall Length (OAL) (Decimal Inch) | 2.0000 |
| Overall Length (OAL) (Fractional Inch) | 2 |
| Overall Length (OAL) (mm) | 50.80 |
| Shank Length (LS) (Decimal Inch) | 1.0000 |
| Shank Length (LS) (Fractional Inch) | 1 |
| Point Angle (Degree) | 118 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +.00000 / -.00050 |
| Cutting Diameter (DC) Tolerance (mm) | +.0000 / -.0127 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 20 |
| Center Cutting | No |
| Number of Margins | 2 |
| Shipping Weight | 0.0080 |
| Series | 101 |
| US Stock | 35 |
| Shank Length (LS) (mm) | 25.40 |
| Usable Length (LU) (Decimal Inch) | 0.7969 |
| Usable Length (LU) (mm) | 20.24 |
| Coating Description | Bright/Uncoated |
| Double Margins (Yes/No) | No |
| Flute Type | Spiral |
Alternate Products

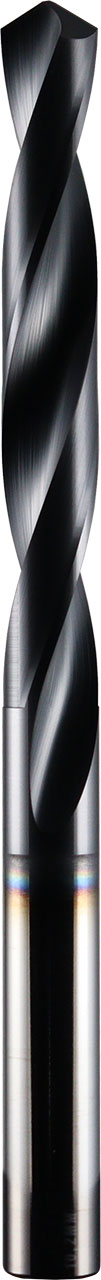

#44, 118 Degree Point, 0.0860" Shank Dia, 2" OAL, 2 Flute, 5xD, Ti-NAMITE-A (AlTiN) Coated, Series 101, Solid Carbide Drill - 57117
U.S. stocked items ship next day
Total Available U.S. :20
