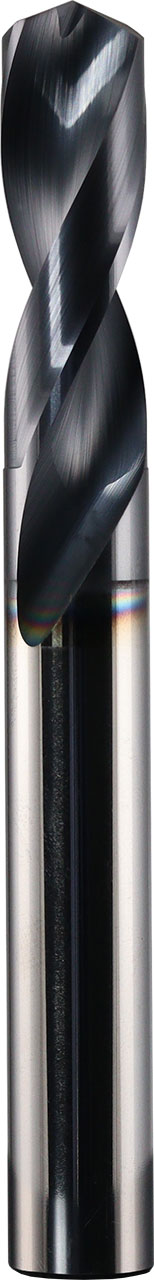

4.00mm Dia, 145 Degree Point, Solid Carbide Drill - 68688


SERIES: 108
General Application Drill
4.00mm Dia, 145 Degree Point, 4.00mm Shank Dia, 55.00mm OAL, 2 Flute, 3xD, Ti-NAMITE-A (AlTiN) Coated, Series 108, Solid Carbide Drill - 68688
U.S. stocked items ship next day
Total Available U.S. :19
Series DescriptionGeneral Application Drill
High PerformanceNo
Unit (inch/mm)mm
Number of Flutes2
Primary Workpiece Material(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material(H) Hardened Materials
Reach (xD)3xD
Size4.00mm
Cutting Diameter (DC) (Decimal Inch)0.1575
Cutting Diameter (DC) (mm)4.00
Shank Diameter (DCON) (Decimal Inch)0.1575
Shank Diameter (DCON) (mm)4.00
Flute Length (LCF) (Decimal Inch)0.8661
Flute Length (LCF) (mm)22.00
Overall Length (OAL) (Decimal Inch)2.1654
Overall Length (OAL) (mm)55.00
Shank Length (LS) (Decimal Inch)1.3640
Point Angle (Degree)145
Cutting Diameter (DC) Tolerance (Decimal Inch)+.00000 / -.00047
Cutting Diameter (DC) Tolerance (mm)+.0000 / -.0119
Shank Diameter (DCON) Tolerance (ISO)h6
Shank TypeStraight
Coolant OptionExternal Coolant
Additional GeometryRight Hand Cut Direction (RHC)
Helix AngleRight Spiral
Helix Angle (Degree)27
Variable HelixNo
Center CuttingNo
Chip BreakerNo
DIN StandardDIN 6539
Number of Margins2
Shipping Weight0.0230
Series108
Weldon FlatNo
US Stock19
Shank Length (LS) (mm)34.65
Usable Length (LU) (Decimal Inch)0.6693
Usable Length (LU) (mm)17.00
Coating DescriptionAlTiN (Ti-NAMITE-A)

Alternate Products

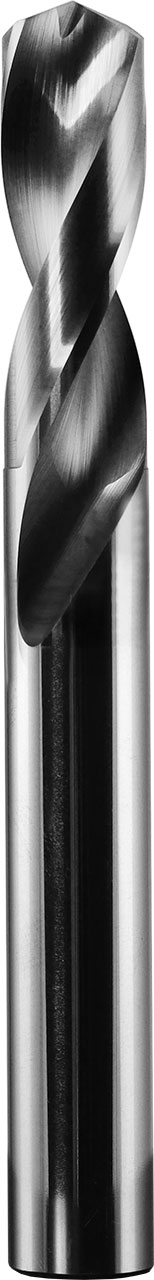

4.00mm Dia, 145 Degree Point, Solid Carbide Drill - 62091
4.00mm Dia, 145 Degree Point, 4.00mm Shank Dia, 55.00mm OAL, 2 Flute, 3xD, Uncoated, Series 108, Solid Carbide Drill - 62091
U.S. stocked items ship next day
Total Available U.S. :60
