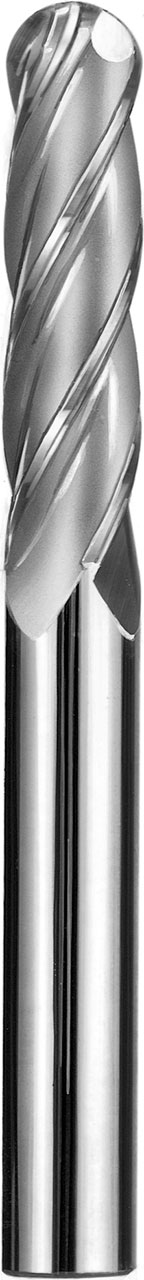

3/8" Dia, 4 Flute, Ball Nose End Mill - 33108


SERIES: L1B
General Application End Mill
3/8" Dia, 1-1/8" LOC, 3/8" Shank Dia, 4 Flute, 30 Degree Helix, Uncoated, Series L1B, Ball Nose End Mill - 33108
List Price: $94.99
U.S. stocked items ship next day
Total Available U.S. :35
Series DescriptionGeneral Application End Mill
High PerformanceNo
End ConfigurationBall Nose
Unit (inch/mm)inch
Number of Flutes4
Primary Workpiece Material(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material(H) Hardened Materials
Cutting Diameter (DC) (Decimal Inch)0.3750
Cutting Diameter (DC) (Fractional Inch)3/8
Cutting Diameter (DC) (mm)9.53
Shank Diameter (DCON) (Decimal Inch)0.3750
Shank Diameter (DCON) (mm)9.53
Length of Cut (APMX) (Decimal Inch)1.1250
Length of Cut (APMX) (Fractional Inch)1-1/8
Length of Cut (APMX) (mm)28.58
Overall Length (LF) (Decimal Inch)3.0000
Overall Length (LF) (Fractional Inch)3
Overall Length (LF) (mm)76.20
Shank Length (LS) (Decimal Inch)1.8750
Shank Length (LS) (Fractional Inch)1-7/8
Cutting Diameter (DC) Tolerance (Decimal Inch)+0.0000/-0.0020
Cutting Diameter (DC) Tolerance (mm)+0.000/-0.050
Shank Diameter (DCON) Tolerance (ISO)h6
Corner Radius (RE) Tolerance (Decimal Inch)+0.0000/-0.0010
Corner Radius (RE) Tolerance (mm)+0.000/-0.025
Shank TypeStraight
Coolant OptionExternal Coolant
Coating DescriptionBright/Uncoated
Additional GeometryRight Hand Cut Direction (RHC)
Rake AnglePositive
Helix AngleRight Spiral
Helix Angle (Degree)30
Variable HelixNo
Center CuttingYes
Chip BreakerNo
Shipping Weight0.1120
SeriesL1B
Weldon FlatNo
US Stock35
Shank Length (LS) (mm)47.63
Shank Diameter (DCON) (Fractional Inch)3/8
Tool LengthLong

Alternate Products

3/8" Dia, 4 Flute, Ball Nose End Mill - 93333
3/8" Dia, 1-1/8" LOC, 3/8" Shank Dia, 4 Flute, 30 Degree Helix, Amorphous Diamond Coated, Series L1B, Ball Nose End Mill - 93333
List Price: $168.40
U.S. stocked items ship next day
Total Available U.S. :0
3/8" Dia, 4 Flute, Ball Nose End Mill - 31794
3/8" Dia, 1-1/8" LOC, 3/8" Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series L1B, Ball Nose End Mill - 31794
List Price: $105.66
U.S. stocked items ship next day
Total Available U.S. :16

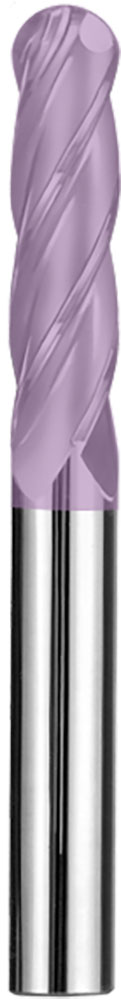

3/8" Dia, 4 Flute, Ball Nose End Mill - 31784
