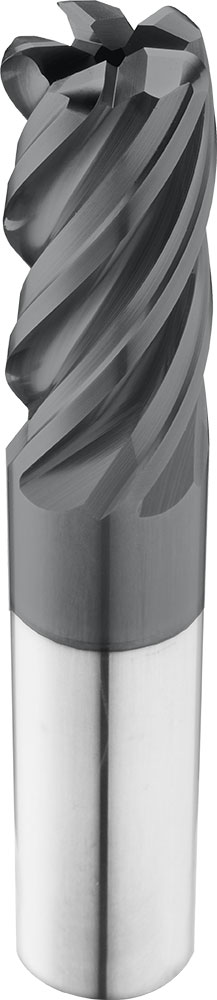

3/4" Dia, 5 Flute, Corner Radius End Mill - 37650
SERIES: Z5C
Z-Carb-HPR
3/4" Dia, 2-1/4" LOC, 3/4" Shank Dia, 0.0600" Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 37650
Feature & Benefits
An ideal balance of helix, indexing, flute depth, rake and relief
Variable indexing for chatter supression and patented edge geometry for shearing and strength
Chatter-free geometry allows deep cutting and high speed machining
Enhanced corner geometry with tight tolerance corner radii
Excels at roughing, ramping, high speed machining and finishing in a variety of materials
Series Description | Z-Carb-HPR |
---|---|
High Performance | Yes |
End Configuration | Corner Radius |
Tool Length | Extra Long |
Unit (inch/mm) | inch |
Number of Flutes | 5 |
Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
Secondary Workpiece Material | (H) Hardened Materials |
Cutting Diameter (DC) (Decimal Inch) | 0.7500 |
Cutting Diameter (DC) (Fractional Inch) | 3/4 |
Cutting Diameter (DC) (mm) | 19.05 |
Shank Diameter (DCON) (Decimal Inch) | 0.7500 |
Shank Diameter (DCON) (mm) | 19.05 |
Length of Cut (APMX) (Decimal Inch) | 2.2500 |
Length of Cut (APMX) (Fractional Inch) | 2-1/4 |
Length of Cut (APMX) (mm) | 57.15 |
Overall Length (LF) (Decimal Inch) | 5.0000 |
Overall Length (LF) (Fractional Inch) | 5 |
Overall Length (LF) (mm) | 127.00 |
Corner Radius (RE) (Decimal Inch) | 0.0600 |
Corner Radius (RE) (mm) | 1.52 |
Non-Cutting Center Diameter (NCD) (Decimal Inch) | 0.2630 |
Non-Cutting Center Diameter (NCD) (mm) | 6.68 |
Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
Shank Diameter (DCON) Tolerance (ISO) | h6 |
Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
Corner Radius (RE) Tolerance (mm) | +0.000/-0.050 |
Shank Type | Straight |
Coolant Option | External Coolant |
Additional Geometry | Right Hand Cut Direction (RHC) |
Rake Angle | Positive |
Helix Angle | Right Spiral |
Helix Angle (Degree) | 37 |
Variable Helix | No |
Center Cutting | No |
Chip Breaker | No |
Shipping Weight | 0.9000 |
Series | Z5C |
Weldon Flat | No |
US Stock | 0 |
Shank Diameter (DCON) (Fractional Inch) | 3/4 |
Coating Description | AlTiN (Ti-NAMITE-A) |
