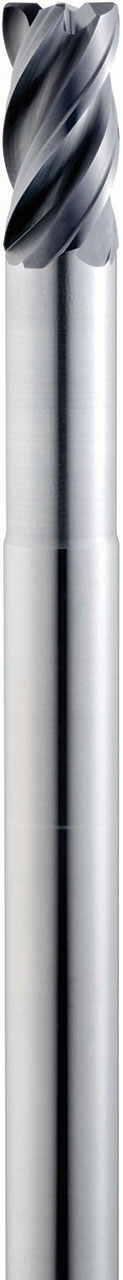

3/4" Dia, 4 Flute, Corner Radius End Mill - 36472

3/4" Dia, 1-1/2" LOC, 3-1/2" Reach, 3/4" Shank Dia, 0.0400" Radius, 4 Flute, 35-38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series ZPCR, Z-Carb-AP, Corner Radius End Mill - 36472
Feature & Benefits
Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
Unequal helix design changes the cutting angle to improve harmonics
Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
Long reach design allows for deeper and faster cuts
Enhanced corner geometry with tight tolerance corner radii
Recommended for materials ≤ 45 HRc (≤ 420 Bhn)
U.S. stocked items ship next day
Total Available U.S. :17
Series DescriptionZ-Carb-AP
High PerformanceYes
End ConfigurationCorner Radius
Unit (inch/mm)inch
Number of Flutes4
Primary Workpiece Material(P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy
Secondary Workpiece Material(H) Hardened Materials

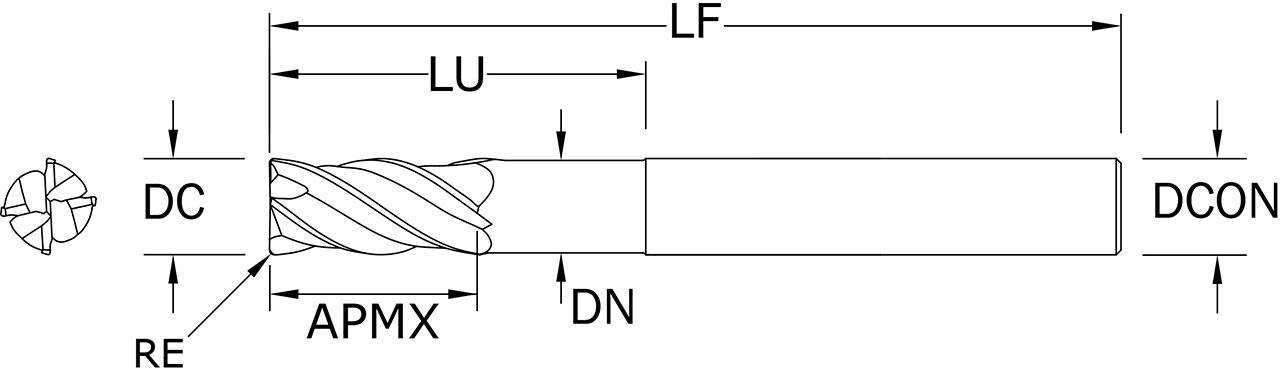

Cutting Diameter (DC) (Decimal Inch)0.7500
Cutting Diameter (DC) (Fractional Inch)3/4
Cutting Diameter (DC) (mm)19.05
Shank Diameter (DCON) (Decimal Inch)0.7500
Shank Diameter (DCON) (mm)19.05
Length of Cut (APMX) (Decimal Inch)1.5000
Length of Cut (APMX) (Fractional Inch)1-1/2
Length of Cut (APMX) (mm)38.10
Reach (LU) (Decimal Inch)3.5000
Reach (LU) (Fractional Inch)3-1/2
Reach (LU) (mm)88.90
Overall Length (LF) (Decimal Inch)6.0000
Overall Length (LF) (Fractional Inch)6
Overall Length (LF) (mm)152.40
Neck Diameter (DN) (Decimal Inch)0.7300
Neck Diameter (DN) (mm)18.54
Corner Radius (RE) (Decimal Inch)0.0400
Corner Radius (RE) (mm)1.02
Shank Length (LS) (Decimal Inch)2.5000
Shank Length (LS) (Fractional Inch)2-1/2
Cutting Diameter (DC) Tolerance (Decimal Inch)+0.0000/-0.0020
Cutting Diameter (DC) Tolerance (mm)+0.000/-0.050
Shank Diameter (DCON) Tolerance (ISO)h6
Corner Radius (RE) Tolerance (Decimal Inch)+0.0000/-0.0020
Corner Radius (RE) Tolerance (mm)+0.000/-0.050
Shank TypeStraight
Coolant OptionExternal Coolant
Coating Description TX (Ti-NAMITE-X)
Additional GeometryFlute Spacing Unequal / Right Hand Cut Direction (RHC)
Rake AngleVariable
Helix AngleVariable Right Spiral
Helix Angle (Degree)35-38
Variable HelixYes
Center CuttingYes
Chip BreakerNo
Shipping Weight1.3310
Weldon FlatNo
US Stock17
Shank Length (LS) (mm)63.50
Shank Diameter (DCON) (Fractional Inch)3/4
Tool LengthLong Reach Neck
