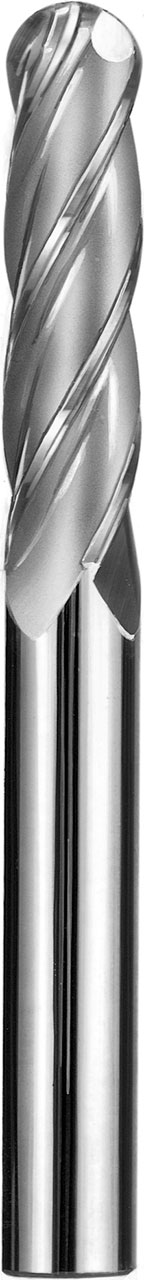

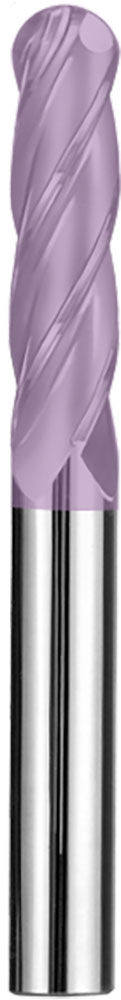

3/4" Dia, 4 Flute, Ball Nose End Mill - 31798
SERIES: L1B
General Application End Mill
3/4" Dia, 2-1/4" LOC, 3/4" Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series L1B, Ball Nose End Mill - 31798
Series Description | General Application End Mill |
---|---|
High Performance | No |
End Configuration | Ball Nose |
Unit (inch/mm) | inch |
Number of Flutes | 4 |
Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
Secondary Workpiece Material | (H) Hardened Materials |
Cutting Diameter (DC) (Decimal Inch) | 0.7500 |
Cutting Diameter (DC) (Fractional Inch) | 3/4 |
Cutting Diameter (DC) (mm) | 19.05 |
Shank Diameter (DCON) (Decimal Inch) | 0.7500 |
Shank Diameter (DCON) (mm) | 19.05 |
Length of Cut (APMX) (Decimal Inch) | 2.2500 |
Length of Cut (APMX) (Fractional Inch) | 2-1/4 |
Length of Cut (APMX) (mm) | 57.15 |
Overall Length (LF) (Decimal Inch) | 5.0000 |
Overall Length (LF) (Fractional Inch) | 5 |
Overall Length (LF) (mm) | 127.00 |
Shank Length (LS) (Decimal Inch) | 2.7500 |
Shank Length (LS) (Fractional Inch) | 2-3/4 |
Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
Shank Diameter (DCON) Tolerance (ISO) | h6 |
Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0010 |
Corner Radius (RE) Tolerance (mm) | +0.000/-0.025 |
Shank Type | Straight |
Coolant Option | External Coolant |
Additional Geometry | Right Hand Cut Direction (RHC) |
Rake Angle | Positive |
Helix Angle | Right Spiral |
Helix Angle (Degree) | 30 |
Variable Helix | No |
Center Cutting | Yes |
Chip Breaker | No |
Shipping Weight | 0.9730 |
Series | L1B |
Weldon Flat | No |
US Stock | 0 |
Shank Length (LS) (mm) | 69.85 |
Shank Diameter (DCON) (Fractional Inch) | 3/4 |
Tool Length | Long |
Coating Description | AlTiN (Ti-NAMITE-A) |
