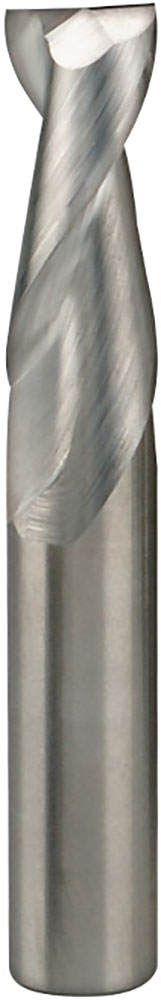

3/4" Dia, 2 Flute, Square End End Mill - 34627

SERIES: 47

S-Carb

3/4" Dia, 1.6200" LOC, 3/4" Shank Dia, 2 Flute, 35 Degree Helix, Uncoated, Series 47, S-Carb, Square End End Mill - 34627

Feature & Benefits

Circular land reduces edge aggressiveness for varied speed and feed rates

2 Flutes effectively manage the large size and volume of chips produced during the aggressive machining process

Excellent balance at high speeds and aggressive plunging capability

Recommended for materials ≤ 150 Bhn (≤ 7 HRc)

Total Available U.S. :2

Series Description	S-Carb
High Performance	Yes
End Configuration	Square End
Unit (inch/mm)	inch
Number of Flutes	2
Primary Workpiece Material	(N) Non-Ferrous Materials
Secondary Workpiece Material	Plastics & Composites
Cutting Diameter (DC) (Decimal Inch)	0.7500
Cutting Diameter (DC) (Fractional Inch)	3/4
Cutting Diameter (DC) (mm)	19.05
Shank Diameter (DCON) (Decimal Inch)	0.7500
Shank Diameter (DCON) (mm)	19.05
Length of Cut (APMX) (Decimal Inch)	1.6200
Length of Cut (APMX) (mm)	41.15
Overall Length (LF) (Decimal Inch)	4.0000
Overall Length (LF) (Fractional Inch)	4
Overall Length (LF) (mm)	101.60
Shank Length (LS) (Decimal Inch)	2.3800
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.00051
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.013
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Helix Angle	Right Spiral
Helix Angle (Degree)	35
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.7740
Series	47
Weldon Flat	No
US Stock	2
Shank Length (LS) (mm)	60.45
Shank Diameter (DCON) (Fractional Inch)	3/4
Tool Length	Regular
Coating Description	Bright/Uncoated
Flute Type	Spiral
