3/4" Dia, 2 Flute, Corner Radius End Mill - 38348
SERIES: 03C
General Application End Mill

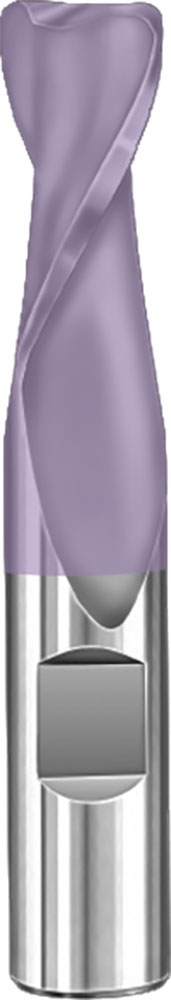

3/4" Dia, 1-1/2" LOC, 3/4" Shank Dia, 0.0900" Radius, 2 Flute, 30 Degree Helix, Ti-NAMITE-C (TiCN) Coated, Series 03C, Corner Radius End Mill - 38348
Feature & Benefits
Weldon Flat
| Series | 03C |
|---|---|
| Series Description | General Application End Mill |
| High Performance | No |
| End Configuration | Corner Radius |
| Unit (inch/mm) | inch |
| Number of Flutes | 2 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.7500 |
| Cutting Diameter (DC) (Fractional Inch) | 3/4 |
| Cutting Diameter (DC) (mm) | 19.05 |
| Shank Diameter (DCON) (Decimal Inch) | 0.7500 |
| Shank Diameter (DCON) (mm) | 19.05 |
| Length of Cut (APMX) (Decimal Inch) | 1.5000 |
| Length of Cut (APMX) (Fractional Inch) | 1-1/2 |
| Length of Cut (APMX) (mm) | 38.10 |
| Overall Length (LF) (Decimal Inch) | 4.0000 |
| Overall Length (LF) (mm) | 101.60 |
| Corner Radius (RE) (Decimal Inch) | 0.0900 |
| Corner Radius (RE) (mm) | 2.29 |
| Shank Length (LS) (Decimal Inch) | 1.8000 |
| Shank Length (LS) (mm) | 45.72 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0,000/-0,050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Corner Radius (RE) Tolerance (mm) | +0,000/-0,050 |
| Shank Type | Weldon (Drive Flat) |
| Weldon Flat | Yes |
| Coolant Option | External Coolant |
| Coating Description | TiCN (Ti-NAMITE-C) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.7500 |
| US Stock | 0 |
| Shank Diameter (DCON) (Fractional Inch) | 3/4 |
| Tool Length | Stub |
Alternate Products

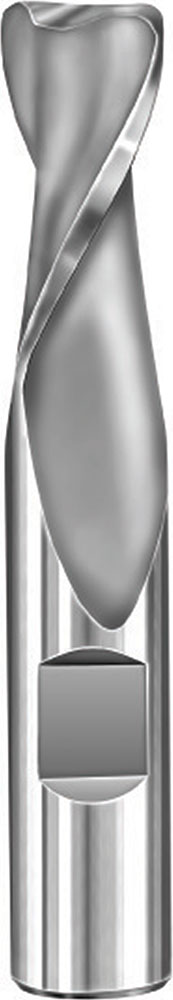

3/4" Dia, 1-1/2" LOC, 3/4" Shank Dia, 0.0900" Radius, 2 Flute, 30 Degree Helix, Uncoated, Series 03C, Corner Radius End Mill - 38297
List Price: $326.18
U.S. stocked items ship next day
Total Available U.S. :47

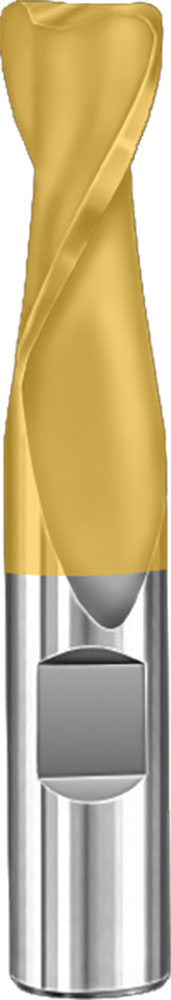

3/4" Dia, 1-1/2" LOC, 3/4" Shank Dia, 0.0900" Radius, 2 Flute, 30 Degree Helix, Ti-NAMITE (TiN) Coated, Series 03C, Corner Radius End Mill - 38298
List Price: $346.52
U.S. stocked items ship next day
Total Available U.S. :0

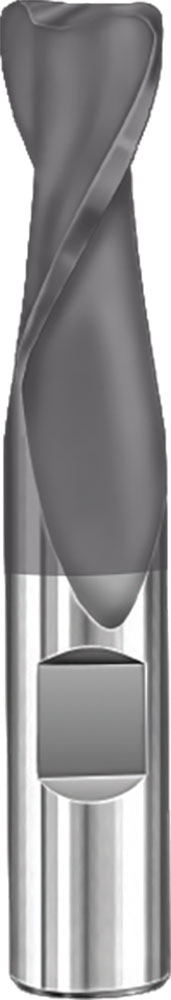

3/4" Dia, 1-1/2" LOC, 3/4" Shank Dia, 0.0900" Radius, 2 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 03C, Corner Radius End Mill - 38390
List Price: $346.52
U.S. stocked items ship next day
Total Available U.S. :0
