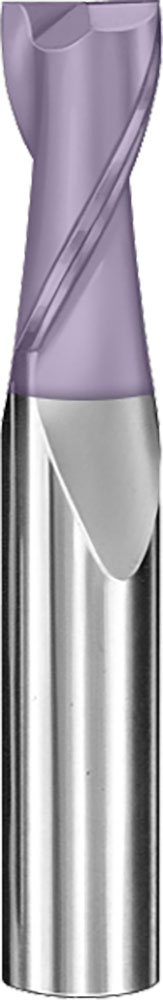

3/32" Dia, 2 Flute, Square End End Mill - 35301

SERIES: 52S

General Application End Mill - High Shear

3/32" Dia, 3/8" LOC, 1/8" Shank Dia, 2 Flute, 30 Degree Helix, Ti-NAMITE-C (TiCN) Coated, Series 52S, High Shear, Square End End Mill - 35301

Total Available U.S. :2

Series Description	General Application End Mill - High Shear
End Configuration	Square End
Unit (inch/mm)	inch
Number of Flutes	2
Primary Workpiece Material	(N) Non-Ferrous Materials

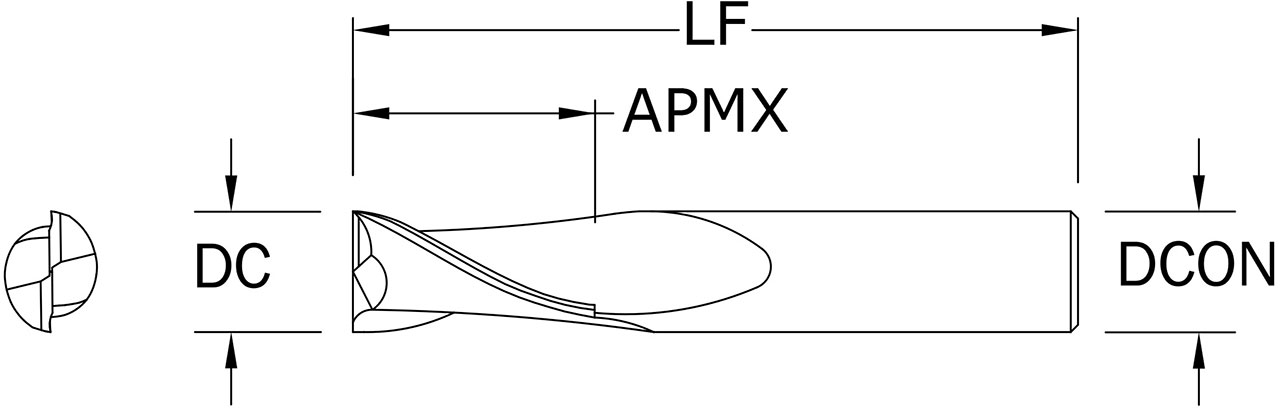

Cutting Diameter (DC) (Decimal Inch)	0.0938
Cutting Diameter (DC) (Fractional Inch)	3/32
Cutting Diameter (DC) (mm)	2.38
Shank Diameter (DCON) (Decimal Inch)	0.1250
Shank Diameter (DCON) (mm)	3.18
Length of Cut (APMX) (Decimal Inch)	0.3750
Length of Cut (APMX) (Fractional Inch)	3/8
Length of Cut (APMX) (mm)	9.53
Overall Length (LF) (Decimal Inch)	1.5000
Overall Length (LF) (Fractional Inch)	1-1/2
Overall Length (LF) (mm)	38.10
Shank Length (LS) (Decimal Inch)	1.1250
Shank Length (LS) (Fractional Inch)	1-1/8
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0020
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.050
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Helix Angle	Right Spiral
Helix Angle (Degree)	30
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.0120
Series	52S
Weldon Flat	No
US Stock	2
Shank Length (LS) (mm)	28.58
Shank Diameter (DCON) (Fractional Inch)	1/8
Tool Length	Long
Coating Description	TiCN (Ti-NAMITE-C)
Flute Type	Spiral

Alternate Products

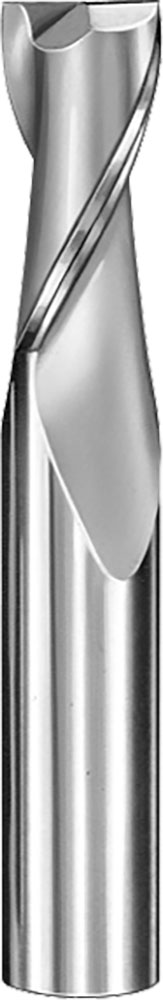

3/32" Dia, 3/8" LOC, 1/8" Shank Dia, 2 Flute, 30 Degree Helix, Uncoated, Series 52S, High Shear, Square End End Mill - 35275

Total Available U.S. :25
