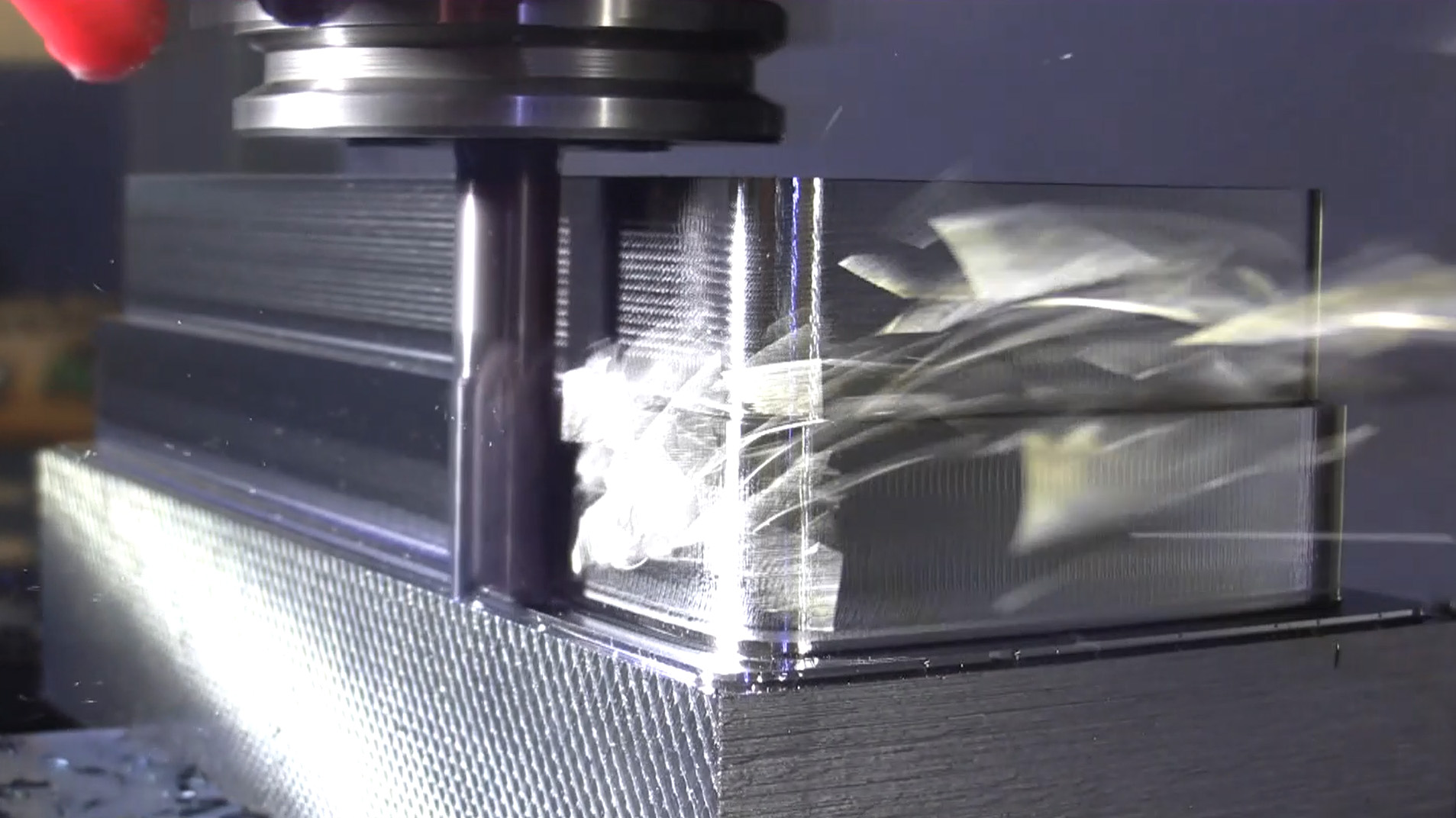

3/16" Dia, 5 Flute, Chip Breaker Square End Mill - 37769
SERIES: Z5S
Z-Carb-HPR
3/16" Dia, 3/8" LOC, 3/4" Reach, 3/16" Shank Dia, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5S, Z-Carb-HPR, Chip Breaker Square End Mill - 37769
Feature & Benefits
Positive Radial Rake
Variable Flute Pattern
Open Center Design
Long Reach
| Series Description | Z-Carb-HPR |
|---|---|
| High Performance | Yes |
| End Configuration | Chip Breaker (Square) |
| Tool Length | Long Reach Neck |
| Unit (inch/mm) | inch |
| Number of Flutes | 5 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

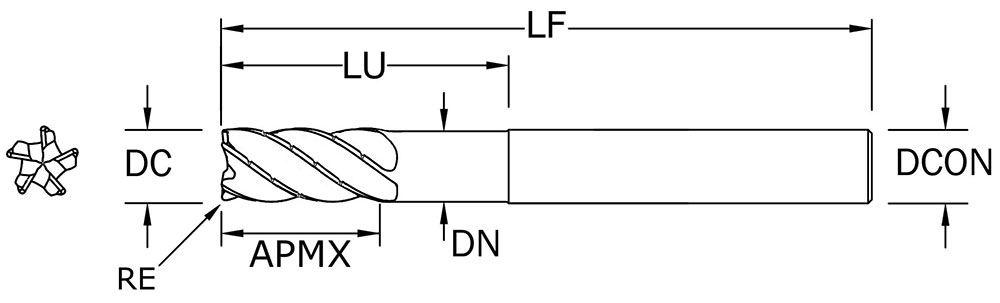

| Cutting Diameter (DC) (Decimal Inch) | 0.1875 |
| Cutting Diameter (DC) (Fractional Inch) | 3/16 |
| Cutting Diameter (DC) (mm) | 4.76 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1875 |
| Shank Diameter (DCON) (mm) | 4.76 |
| Length of Cut (APMX) (Decimal Inch) | 0.3750 |
| Length of Cut (APMX) (Fractional Inch) | 3/8 |
| Length of Cut (APMX) (mm) | 9.53 |
| Reach (LU) (Decimal Inch) | 0.7500 |
| Reach (LU) (Fractional Inch) | 3/4 |
| Reach (LU) (mm) | 19.05 |
| Overall Length (LF) (Decimal Inch) | 2.5000 |
| Overall Length (LF) (Fractional Inch) | 2-1/2 |
| Overall Length (LF) (mm) | 63.50 |
| Neck Diameter (DN) (Decimal Inch) | 0.1780 |
| Neck Diameter (DN) (mm) | 4.52 |
| Non-Cutting Center Diameter (NCD) (Decimal Inch) | 0.0660 |
| Non-Cutting Center Diameter (NCD) (mm) | 1.68 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0012 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.030 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 37 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | Yes |
| Shipping Weight | 0.0330 |
| Series | Z5S |
| Weldon Flat | No |
| US Stock | 20 |
| Shank Diameter (DCON) (Fractional Inch) | 3/16 |
| Coating Description | TM (Ti-NAMITE-M) |
| Flute Type | Spiral |
